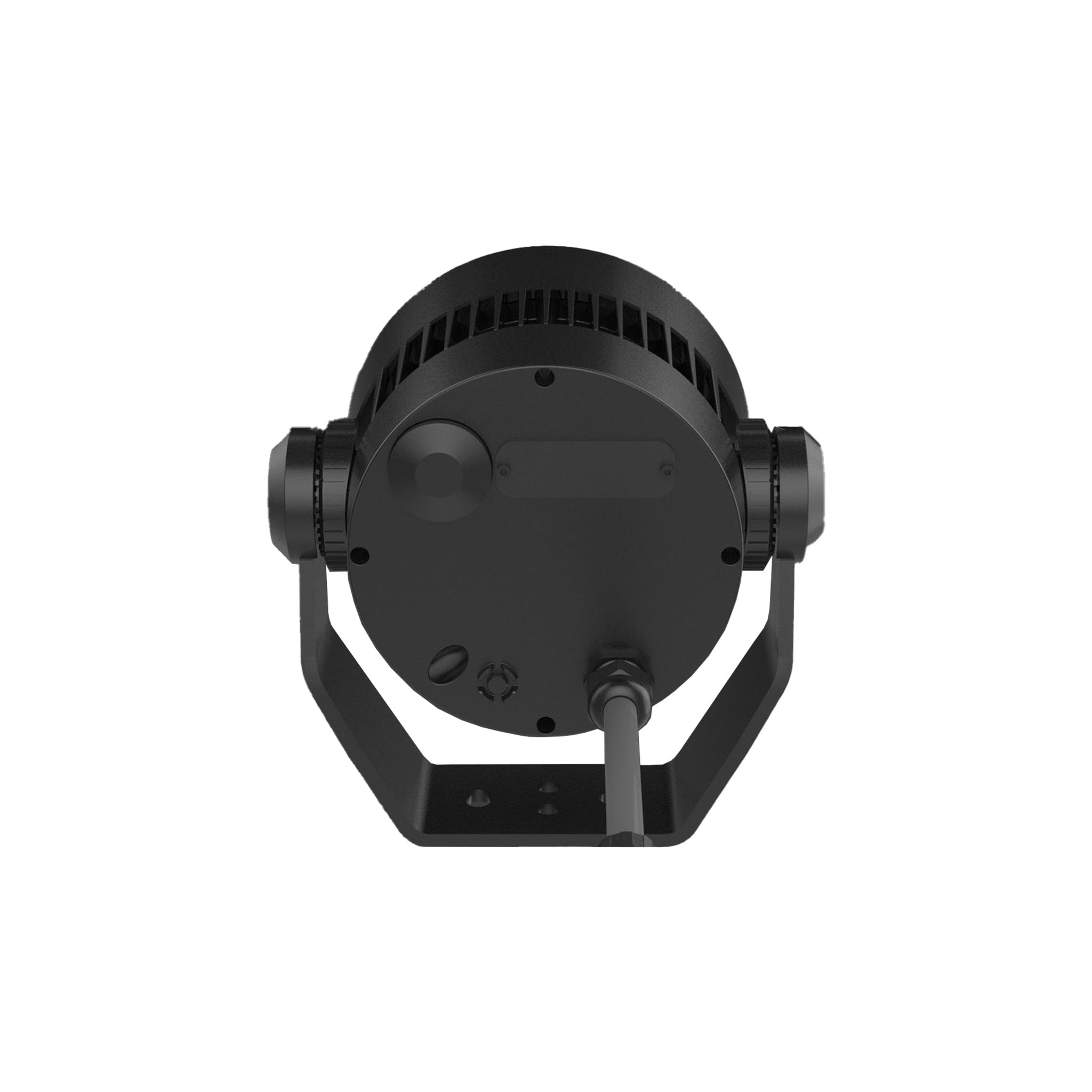

Dyna Drum S3 SCS

Lumens: 5,650
Power: 110W / 60W

The Dyna Drum™ family of floodlights has been the premier choice of serious designers for years; their high outputs, robust weather protection, and unmatched reliability are legendary.

Dyna Drum S3 SCS (single color series) models use individual color emitters to produce strong outputs and provide the narrowest optics in the Dyna Drum series. The native 3° beam can be easily modified with quick-fit spread lenses to suit wider applications.

Dyna Drum S3 fixtures are designed and built for the long haul. In the unlikely event of a failure during the lifetime of a fixture, Acclaim has a solution to restore 100% operation in the shortest possible downtime. Our CoreSwap Technology ensures that only the affected module need ever be swapped out, whether that be in our service center or at an on-site installation.

SKU: DS3S#-DS3E#-DS3O#-DS3P#

Featured Technologies

01

CoreSwap

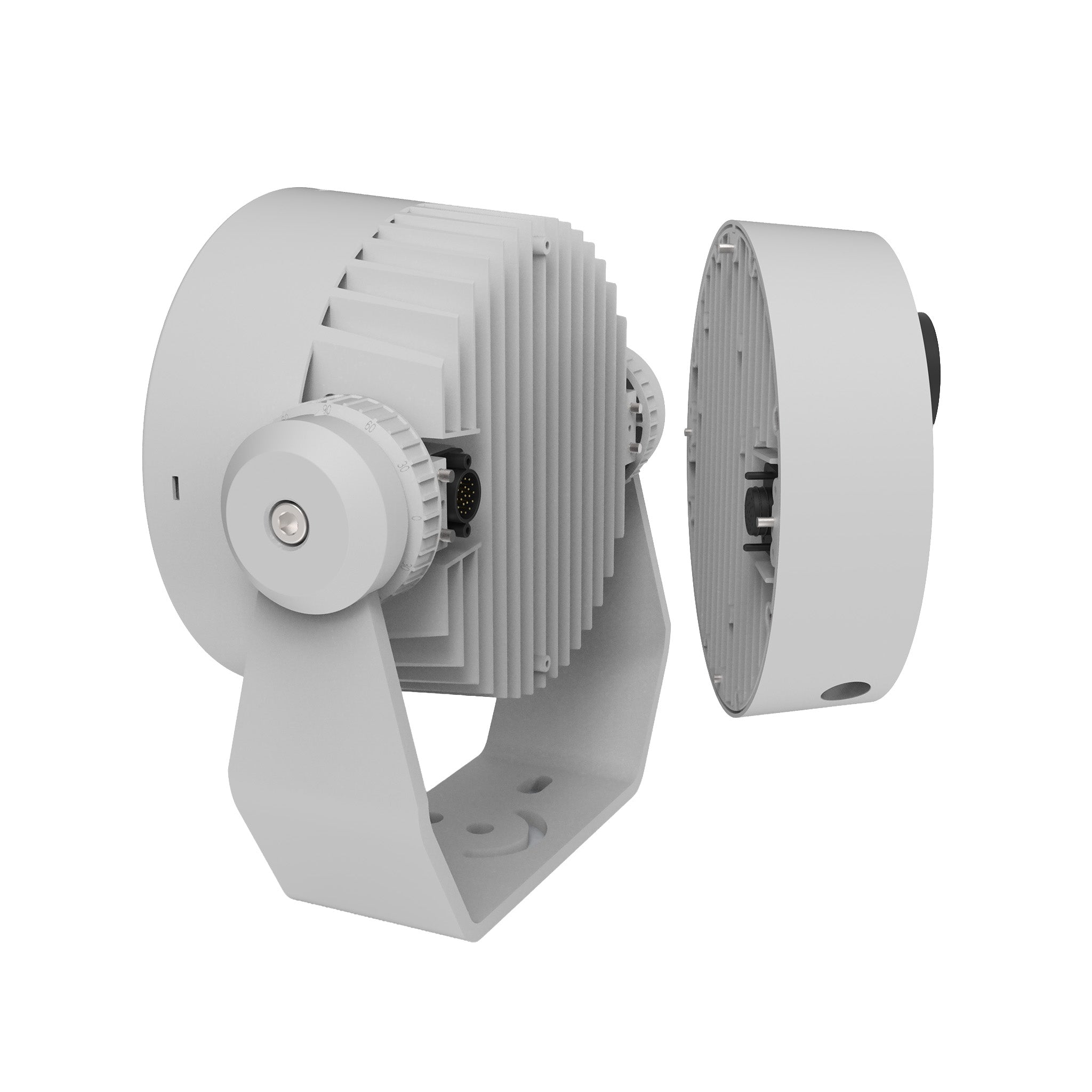

Acclaim's patent-pending CoreSwap Technology provides sustainability and lighting-fast service to your lighting system. Full fixture electronics can be swapped in minutes at our service center or in the field using a multipin blind connector between fixture sections.

02

Outdoor Link System

The Outdoor Link System transforms complex outdoor installations into elegant solutions. Our IP67-rated quick-lock connectors eliminate junction boxes, reduce installation time by up to 60%, and create weatherproof connections that last decades. OLS brings plug-and-play simplicity to professional outdoor lighting.

03

Aria Wireless

Break free from the limitations of traditional control wiring. Aria brings professional-grade wireless DMX to the most demanding environments, transmitting crystal-clear signals up to 2700 feet through rain, snow, and around obstacles. IP66-rated for permanent outdoor installation, Aria-enabled fixtures communicate directly with the transmitter, creating resilient networks that adapt to your project's evolving needs.

01

CoreSwap

Acclaim's patent-pending CoreSwap Technology provides sustainability and lighting-fast service to your lighting system. Full fixture electronics can be swapped in minutes at our service center or in the field using a multipin blind connector between fixture sections.

02

Outdoor Link System

The Outdoor Link System transforms complex outdoor installations into elegant solutions. Our IP67-rated quick-lock connectors eliminate junction boxes, reduce installation time by up to 60%, and create weatherproof connections that last decades. OLS brings plug-and-play simplicity to professional outdoor lighting.

03

Aria Wireless

Break free from the limitations of traditional control wiring. Aria brings professional-grade wireless DMX to the most demanding environments, transmitting crystal-clear signals up to 2700 feet through rain, snow, and around obstacles. IP66-rated for permanent outdoor installation, Aria-enabled fixtures communicate directly with the transmitter, creating resilient networks that adapt to your project's evolving needs.

Downloads

Filename	Document type	File type
Dyna Drum S3 SCS Specification Sheet	Specification Sheet	PDF
Dyna Drum S3 User Guide v3-0b	User Guide	PDF
Dyna Drum S3 IES Files - April 2026	IES Files	ZIP
Dyna Drum S3 2D Drawings	Drawings	ZIP

Tech Specs

Certifications

ETL, FCC, CE, 3G, UKCA, RoHS

Operating Voltage

100-277VAC, 50/60 Hz

Output Power

High or Standard Modes

Power Conductors

3x 14AWG

Power Consumption

110W (High Output mode), 60W (Standard Output mode)

Surge Protection

Built-in 10kV, 5kA ln, 10kA lmax protection

Control

0-100% dimming via wired DMX (with RDM configuration) plus built-in Aria™ X2 Wireless System

Lumen Maintenance

L70 130,000 hours (@ 25° C)

Optics

3° x 3º, 7º x 7º, 10° x 10°, 20° x 20°, 40° x 40°, 60° x 60°, 100° x 100°, 10° x 60° or 30° x 60°

Output

Up to 5,650 lumens

Display Features

Daylight readable OLED settings display

Emitters

RGBW (W=3000K or 4000K), RGBA, Dynamic White (DW - 2200K-5700K), RGBAL

Finish

Gray (RAL 7047), black (RAL 9005), white (RAL 9003) or custom colors (provide RAL #)

Internal Sensors

Temperature, Runtime, Manual Photocell

Mounting

Die cast aluminum with glass lens, marine and natatorium environment ready

Weight

19 lbs. (8.61 Kg)

Ambient Temperature Range

-40° F to 122° F (-40° C to 50° C)

Impact Protection

IK10, protection against 20 joule impact (40cm distance)

Ingress Protection

IP67, wet location (temporary submersion up to 1m for 30 minutes)

Maximum Fixtures In Series

32 via DMX, 32 via OLS at 277VAC, 16 via OLS at 120VAC
