XMT-500
This product is MetaobjectDrop certified.
This product is MetaobjectDrop certified.

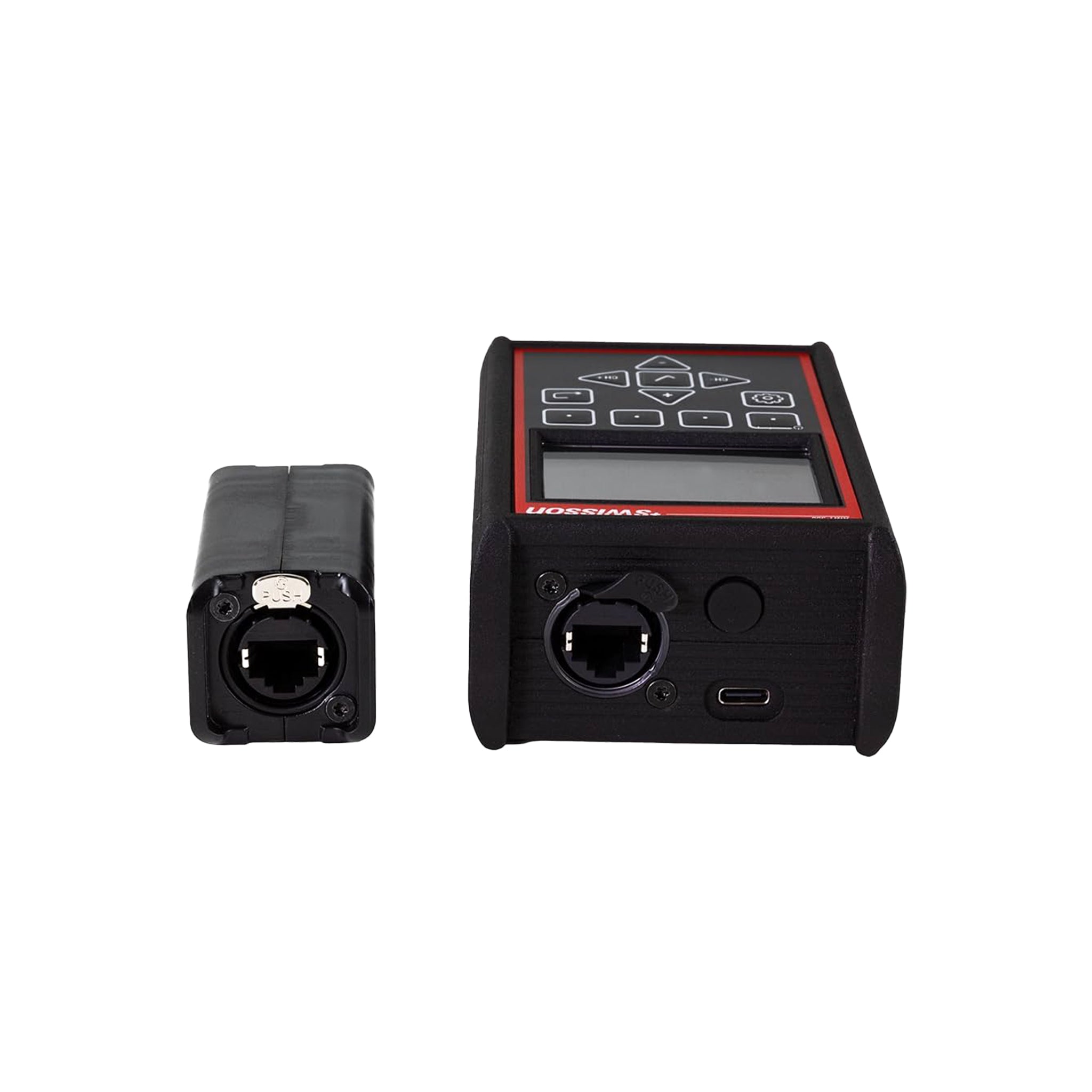

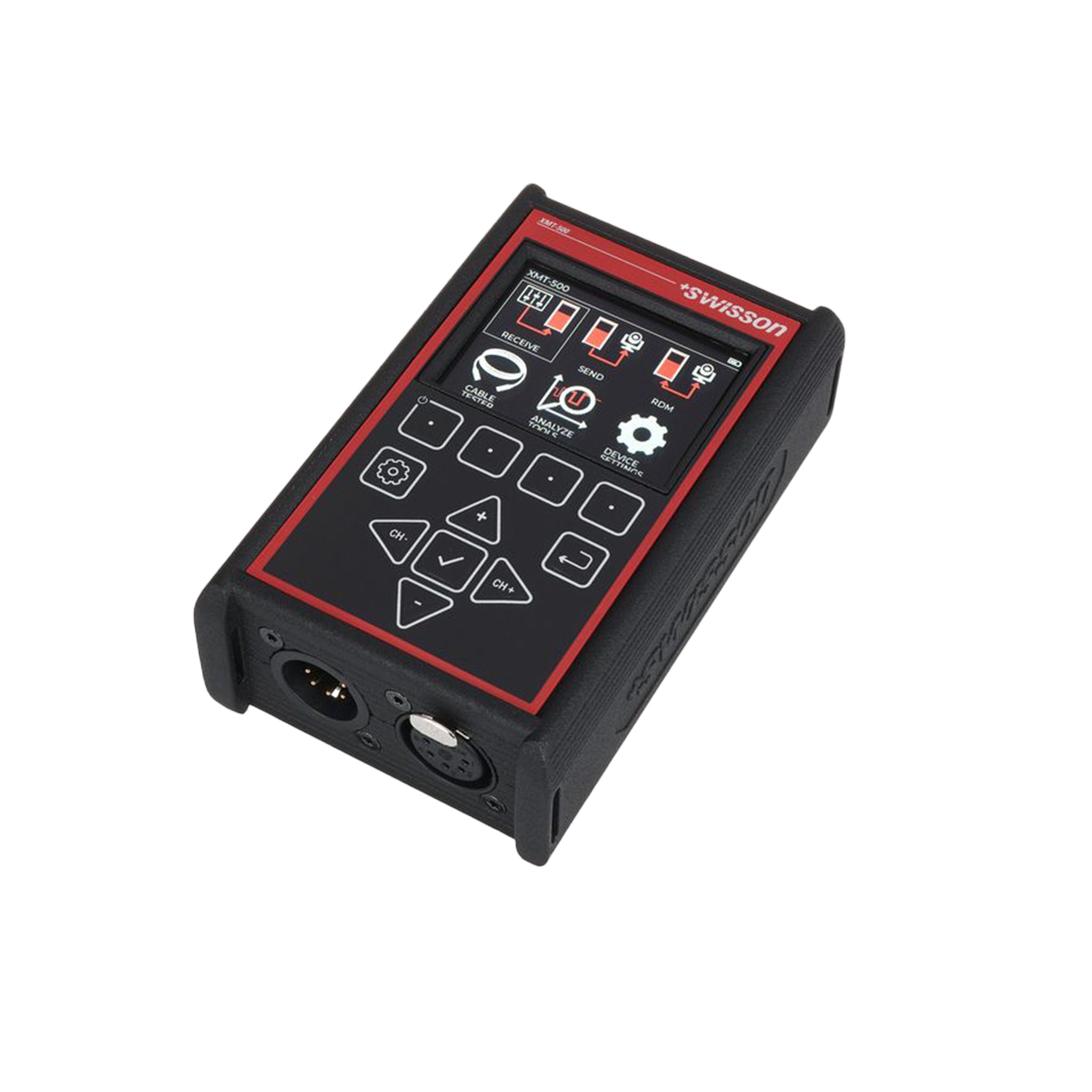

The XMT-500 is a powerful DMX, RDM, Art-Net, and sACN signal analysis, fixture setup, and cable testing tool. It allows for RDM addressing and monitoring of Acclaim Lighting (and 3rd party) products that have RDM capability and can test all elements of the DMX data signal to ensure proper system operation. It features a rechargeable battery via USB-C for portable operation and hardwire cable adapters for non-XLR applications.
XMT-500
Sale price$0.00
Downloads
| Filename | Document type | File type |
|---|---|---|
| XMT-500 Spec Sheet v01 | Specification Sheet | |
| XMT-500 User Guide | User Guide |
Tech Specs
Certifications
CE, RoHsOperating Voltage
5V DC via USB CPower Consumption
7.5WArt-Net
ArtNet 1 through 4DMX Input
ANSI E1.11, 512 ChannelsDMX Output
ANSI E1.11, 512 ChannelsDMX Universes
1Inputs
ANSI E1.11, 512 ChannelsInterface
Physical buttons or touchscreenRDM
ANSI E1.20USB
Type-CConnection
Ethernet, Hard wire DMX (via included adapters), 5 Pin XLR Male & FemaleEthernet
10BASE-T / 100BASE-TX, auto negotiating, auto MDI-XFinish
BlackHousing Material
AluminumWeight
1 lb. (445g)
