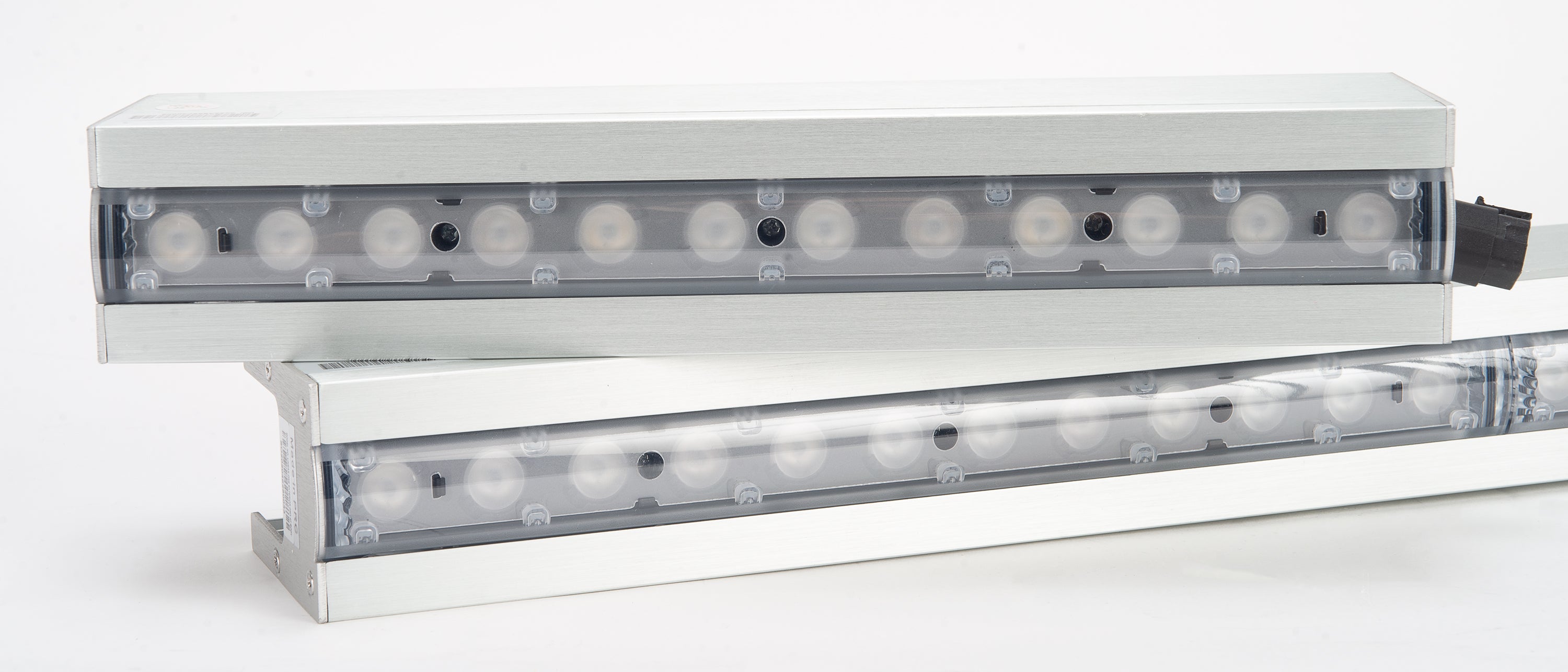

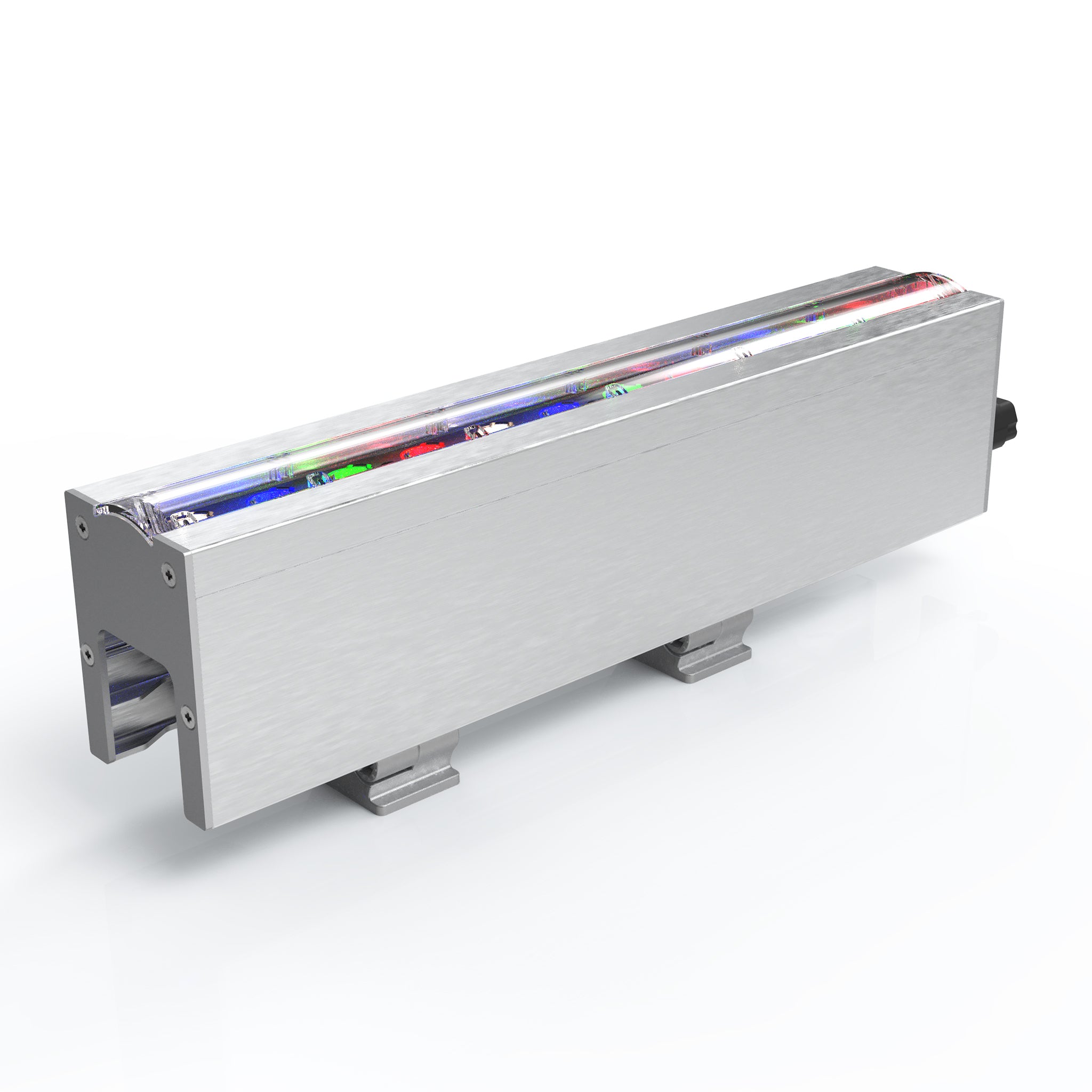

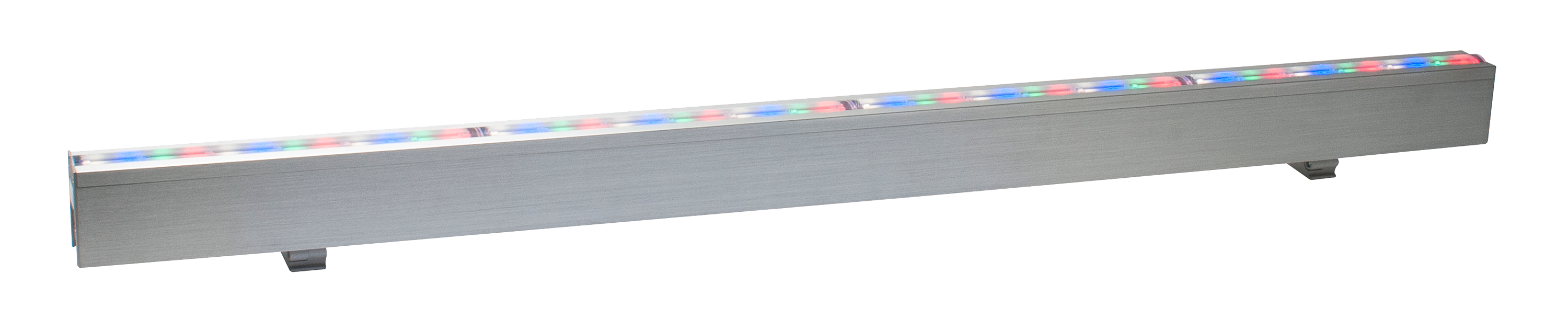

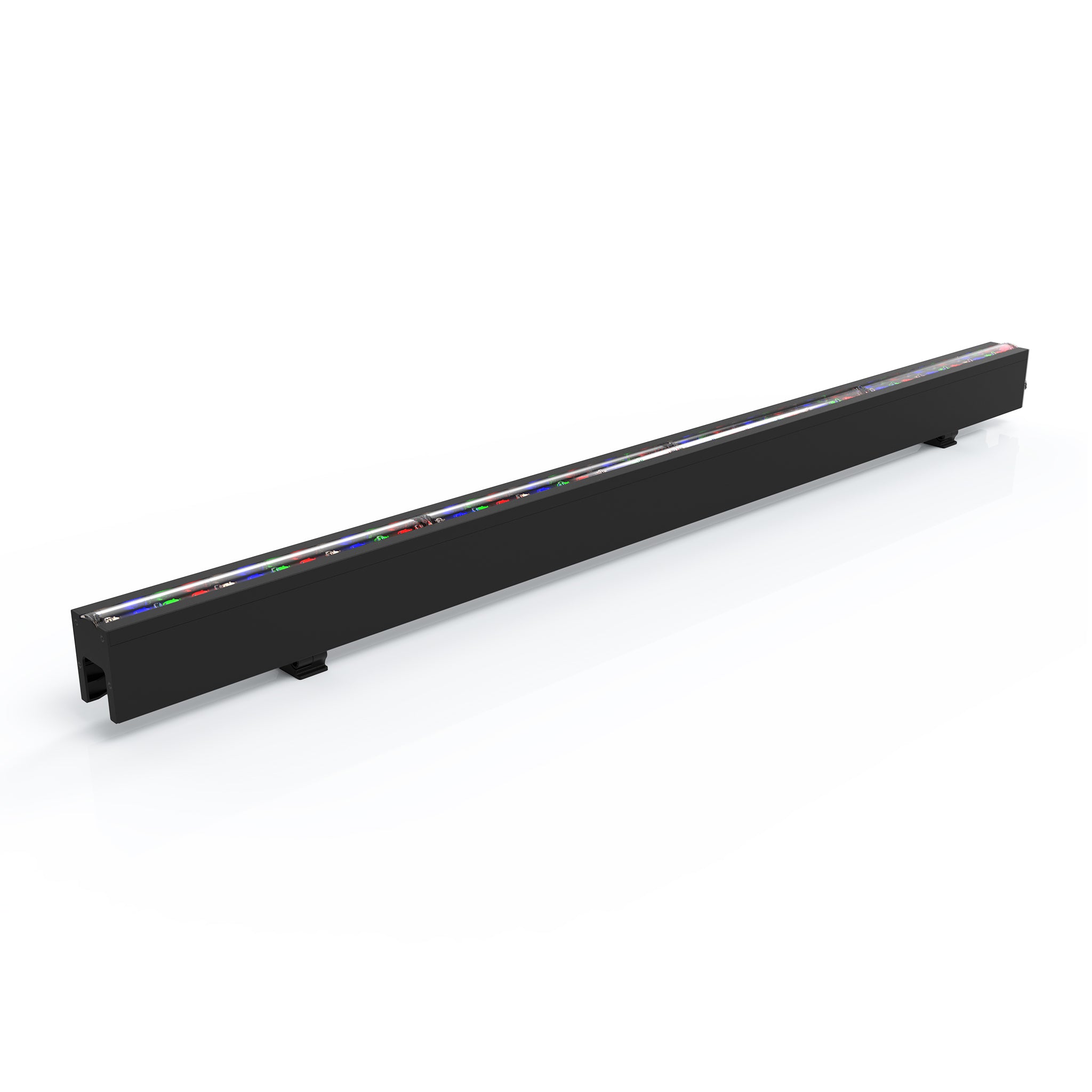

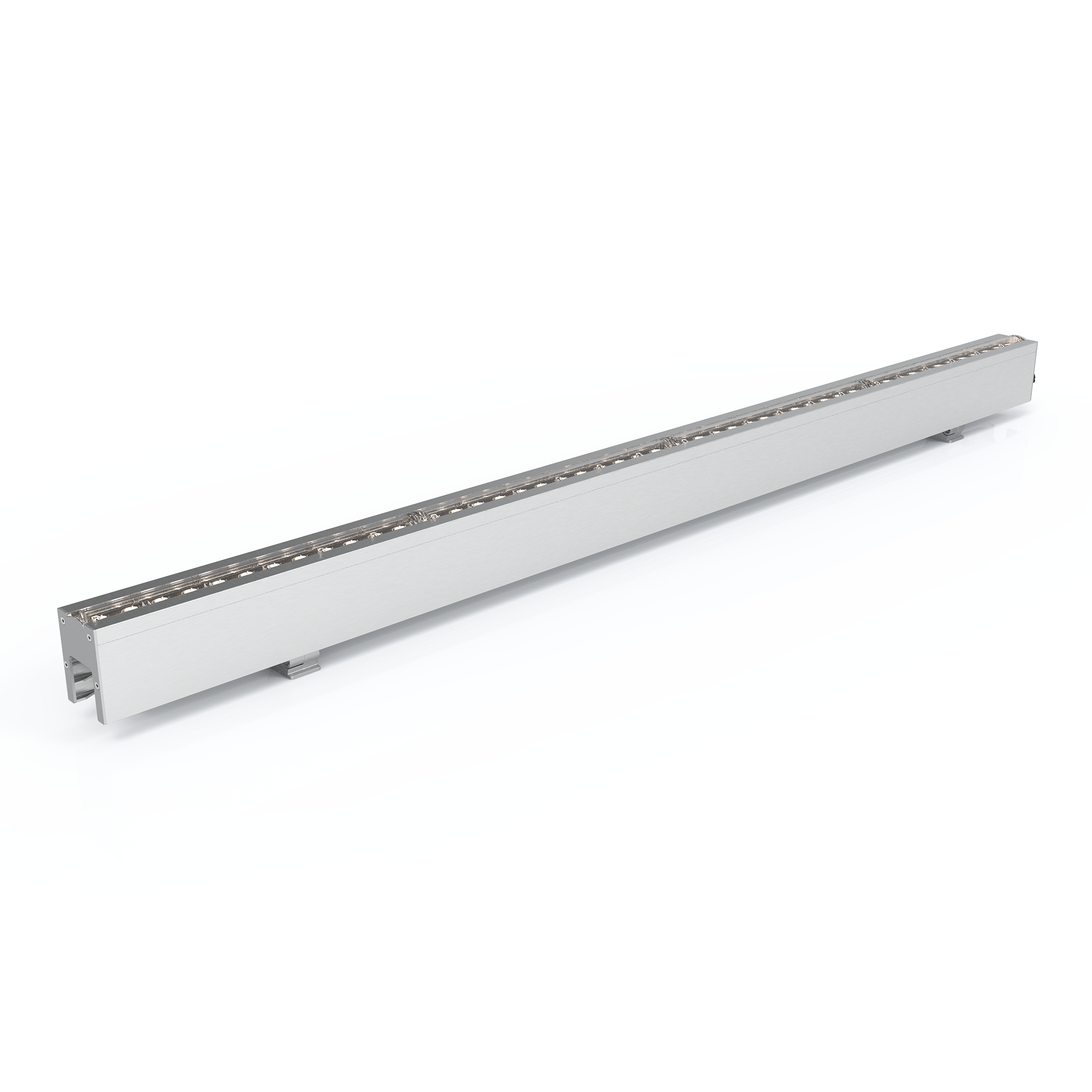

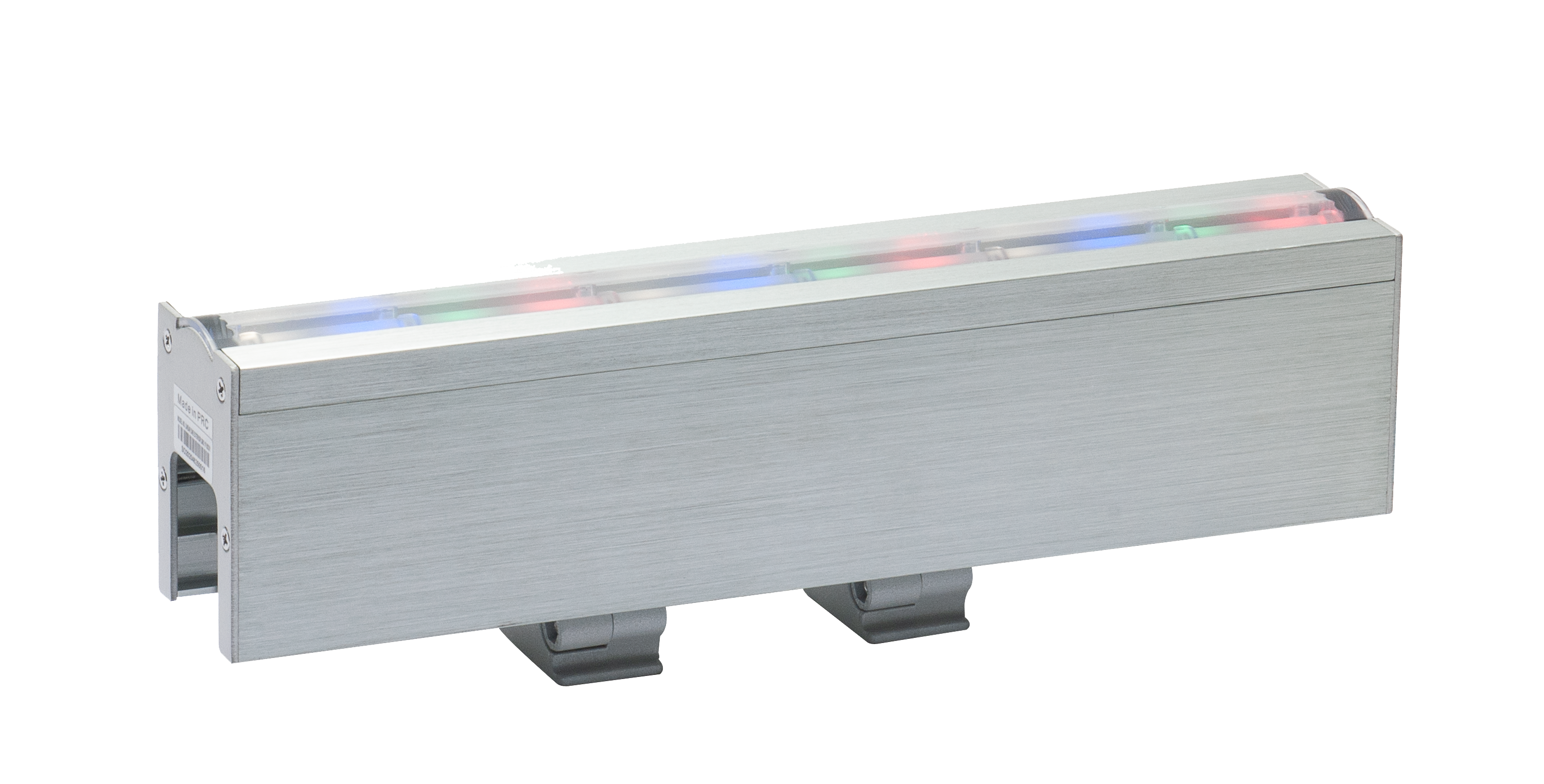

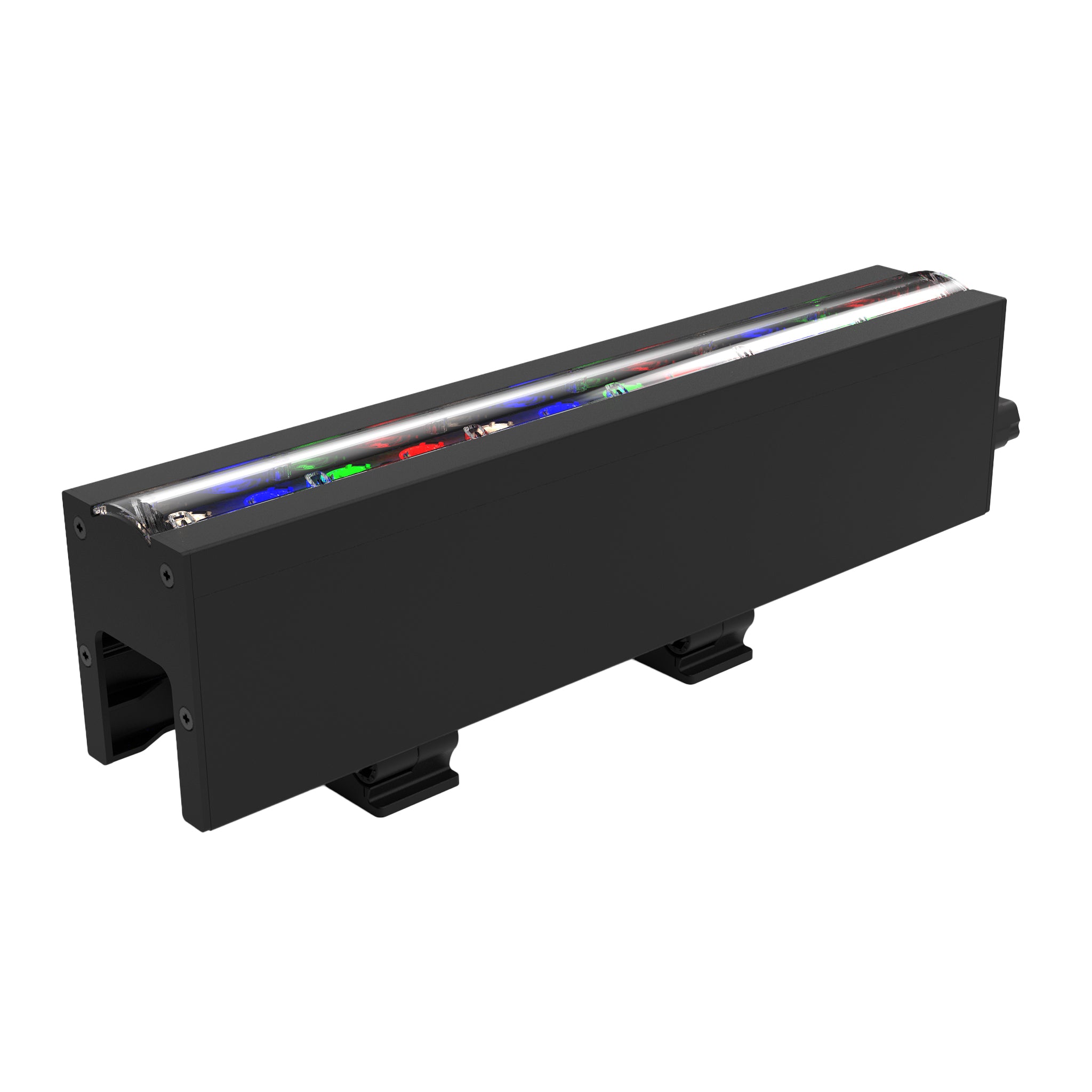

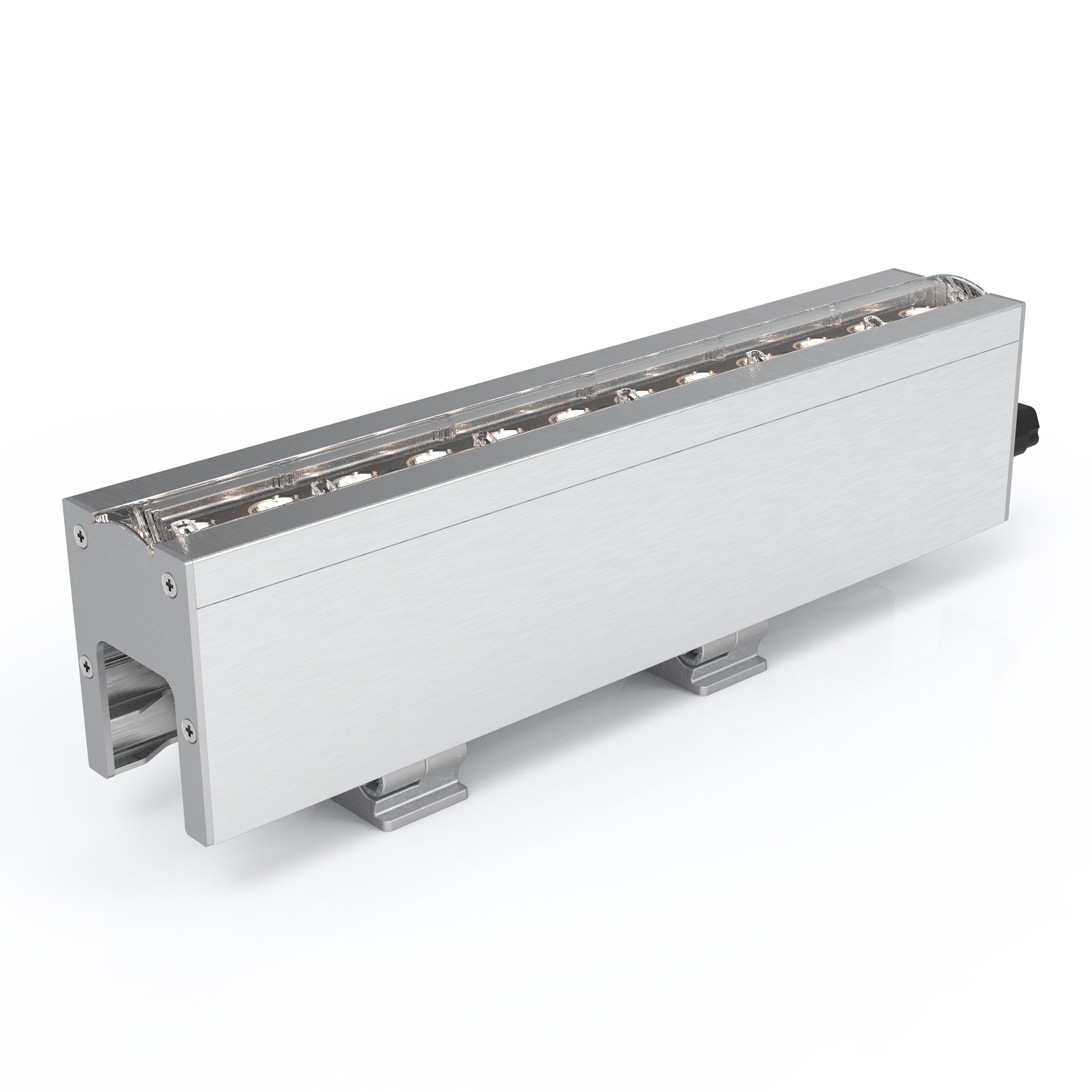

Linear One DMX Exterior

Lumens Per Foot: 760
Power: 20W
TM-30: 83

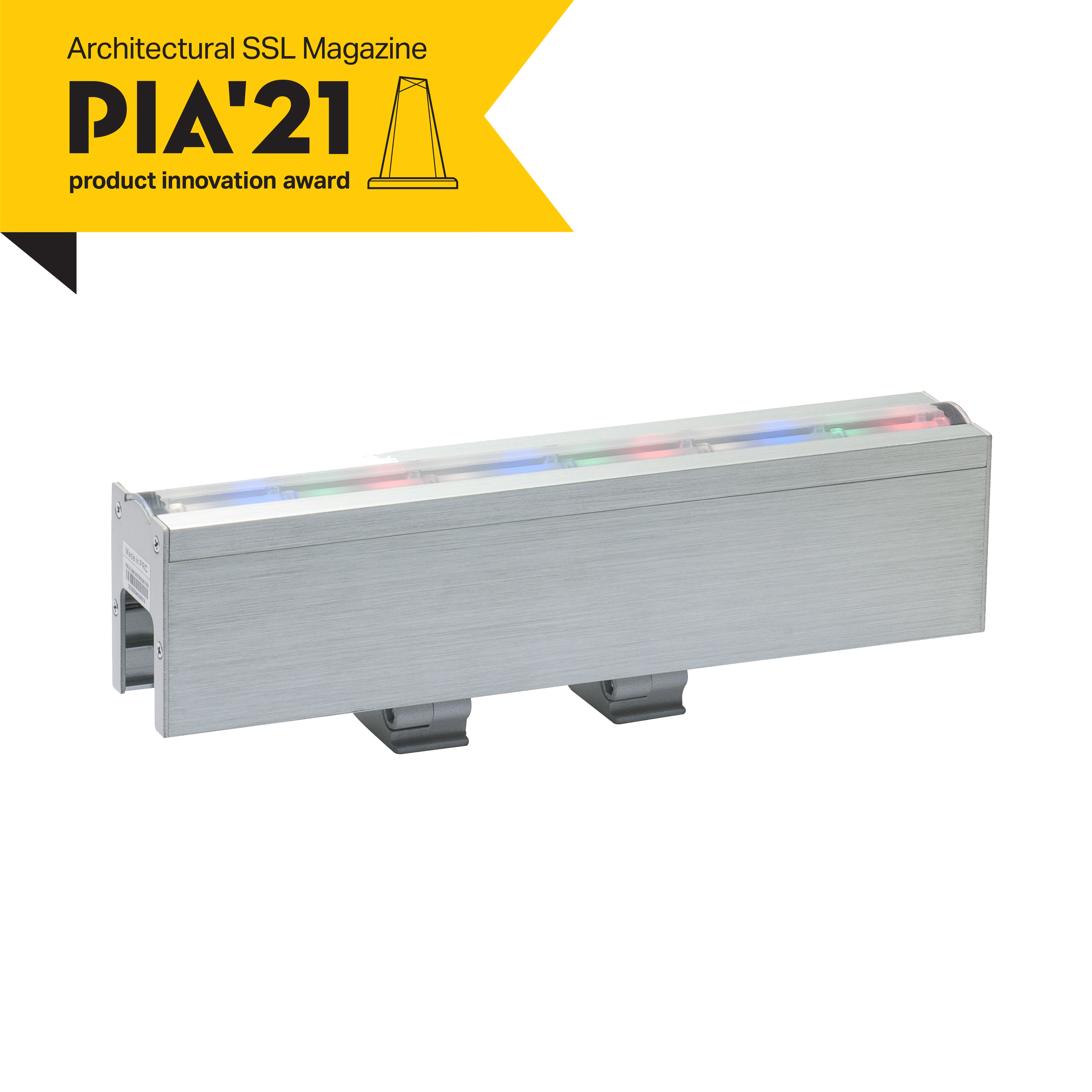

A 2021 PIA Award Winner for product innovation, Linear One is streamlined to work for you. We meticulously craft linear lights that install with no visible cables and create the clutter-free space your work deserves. This means that subtlety enhances your aesthetic as Linear One remains hidden while serving as the powerhouse behind your visual creation. Refined to work with your creativity, Linear One provides end-to-end modular functionality that adapts to your needs and never works against them. Acclaim Lighting is motivated by the passion of its users and strives to produce the very best solutions in architectural lighting. We create beautiful products that work for creativity.

SKU: LXE#-LXC#-OPX#-1

Featured Technologies

01

Acclaim Modular Systems

Born from decades of field experience and engineered without compromise, Acclaim Modular Systems revolutionize how professionals approach lighting projects. Every fixture is built-to-order in our Los Angeles headquarters with complete modularity at its core. Swap optics, change colors, upgrade power; all while maintaining the same housing. No more choosing between perfect specs and impossible deadlines. With AMS, every configuration ships in days, not months.

02

ColorDrive

ColorDrive unleashes the hidden potential of static color applications, delivering up to 4x the output of traditional color-changing fixtures when you need one perfect hue. Our intelligent calibration maintains consistent saturation through the entire dimming range, ensuring your midnight blue stays midnight blue whether at 10% or 100%.

01

Acclaim Modular Systems

Born from decades of field experience and engineered without compromise, Acclaim Modular Systems revolutionize how professionals approach lighting projects. Every fixture is built-to-order in our Los Angeles headquarters with complete modularity at its core. Swap optics, change colors, upgrade power; all while maintaining the same housing. No more choosing between perfect specs and impossible deadlines. With AMS, every configuration ships in days, not months.

02

ColorDrive

ColorDrive unleashes the hidden potential of static color applications, delivering up to 4x the output of traditional color-changing fixtures when you need one perfect hue. Our intelligent calibration maintains consistent saturation through the entire dimming range, ensuring your midnight blue stays midnight blue whether at 10% or 100%.

Downloads

Filename	Document type	File type
Linear One DMX Exterior Specification Sheet - April 2025	Specification Sheet	PDF
Linear One DMX Exterior User Guide v3-0a	User Guide	PDF
Linear One DMX Exterior Revit Files	Revit Files	RFA
Linear One DMX IES 2021.05.27	IES Files	ZIP
Linear One DMX Exterior 2D Drawings	Drawings	ZIP

Tech Specs

Certifications

ETL, FCC, CE, 3G

Operating Voltage

100-277VAC, 50/60 Hz

Power Consumption

20W per foot

Control

0-100% dimming via internal DMX+RDM driver, wireless via optional Aria Wireless System

Lumen Maintenance

L70 150,000 hours (@ 25º C)

Optics

10º x 10º, 10º x 25º, 10º x 40º, 10º x 60º, 30º x 30º, 30º x 60º, 40º x 10º, 45º x 75º, 60º x 10º, 60º x 30º, 60º x 60º, 90º x 10º, 100º x 100º, Asymmetric Left, Asymmetric Right
