MLE30-24DC-UD
This product is MetaobjectDrop certified.
This product is MetaobjectDrop certified.
Specification highlights
- Input Voltage
- 110-277VAC
- Output Power
- 30W
- Output Voltage
- 24VDC

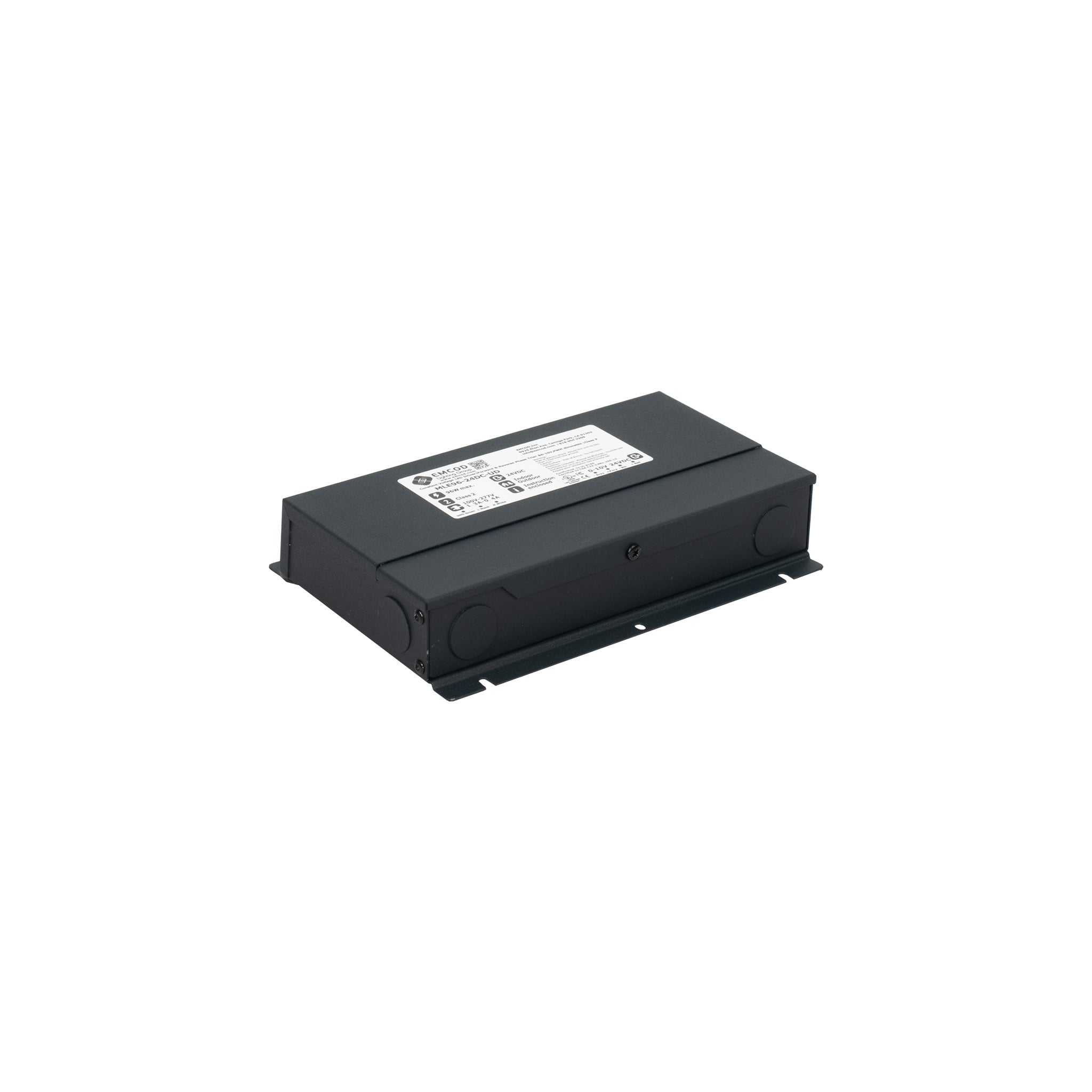

The MLE30-24DC-UD is a multi-protocol, 30W Class 2 driver for low voltage LED products. It features a full range 100-277VAC input, as well TRIAC, ELV, and 0-10V sink or source dimming control options. It can be used with or without a connected dimmer.
MLE30-24DC-UD
Sale price$0.00
Downloads
| Filename | Document type | File type |
|---|---|---|
| MLE96-24DC-UD 2.0.0 | Specification Sheet | |
| MLE96-24DC-UD | User Guide | |
| MLE Compatible Dimmer List 2021 | Compatible Dimmer List |
Tech Specs
Certifications
UL, CSAOperating Voltage
100-277V 50/60HzOutput Power
30WOutput Voltage
24Control
Dimmable with triac forward and reverse phase, 0/1-10V, resistor, PWMConnection
3 wire lead for AC input, 2 wire leads for both TRIAC/ELV and 0-10V, 3/8" conduit knockoutsFinish
Black powder coated steelPhysical
H 4.47" x W 6.79" x D 1.38"Weight
1.8 lbs (0.81 kg)Ambient Temperature Range
-40 F to 113º (-40º C to 45º C)Ingress Protection
Indoor or Outdoor, NEMA 3R
