Flex Exterior Line Channel
Flex Exterior Line Channel
Flex Exterior Line Channel

Flex Exterior Line Channel

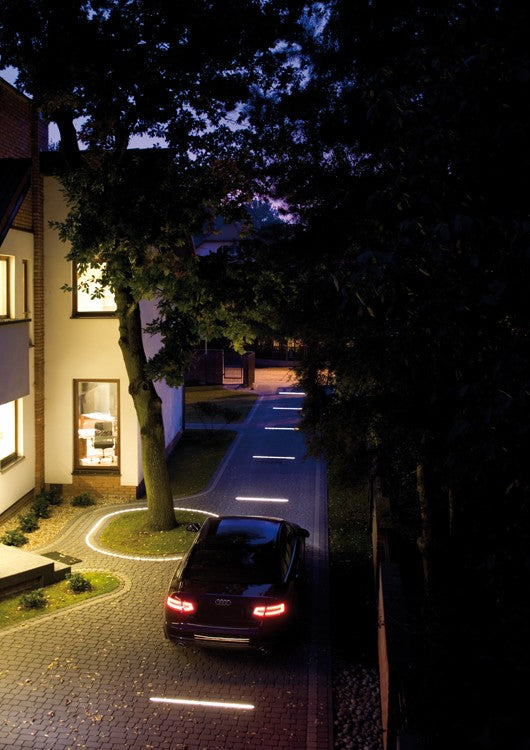

The Flex Exterior Line Channel is an anodized aluminum channel, which allows for outdoor, in-grade installation of Flex Exterior tape.

Compatible with:
Flex One HO SO Exterior
Flex Eco Exterior
UPC: 813127019431SKU: FLK987

Downloads

Filename Document type File type
Flex Exterior Line Channel Spec Sheet - May 2025 Specification Sheet PDF
Flex Exterior Line Channel User Guide v3-0a User Guide PDF

Tech Specs

Pressure Rating
Up to 20 kN static load (4,496 lbf)
Finish
Finished Aluminum
Length
3.28' (1m), cut to length as required
Material
Double anodized aluminum, optional polycarbonate lenses
Mounting
Via pre-cut surface and Dow Corning 799 neutral silicone
Ambient Temperature Range
32° F to 104° F (0° C to 40° C)
Ingress Protection
IP22, dry location
