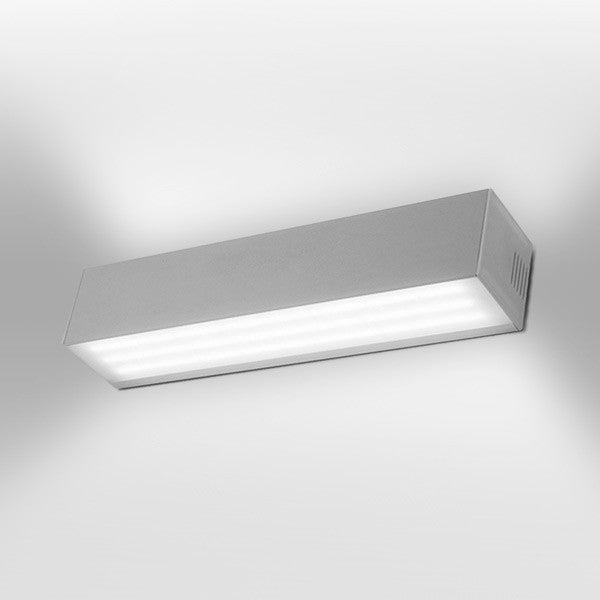

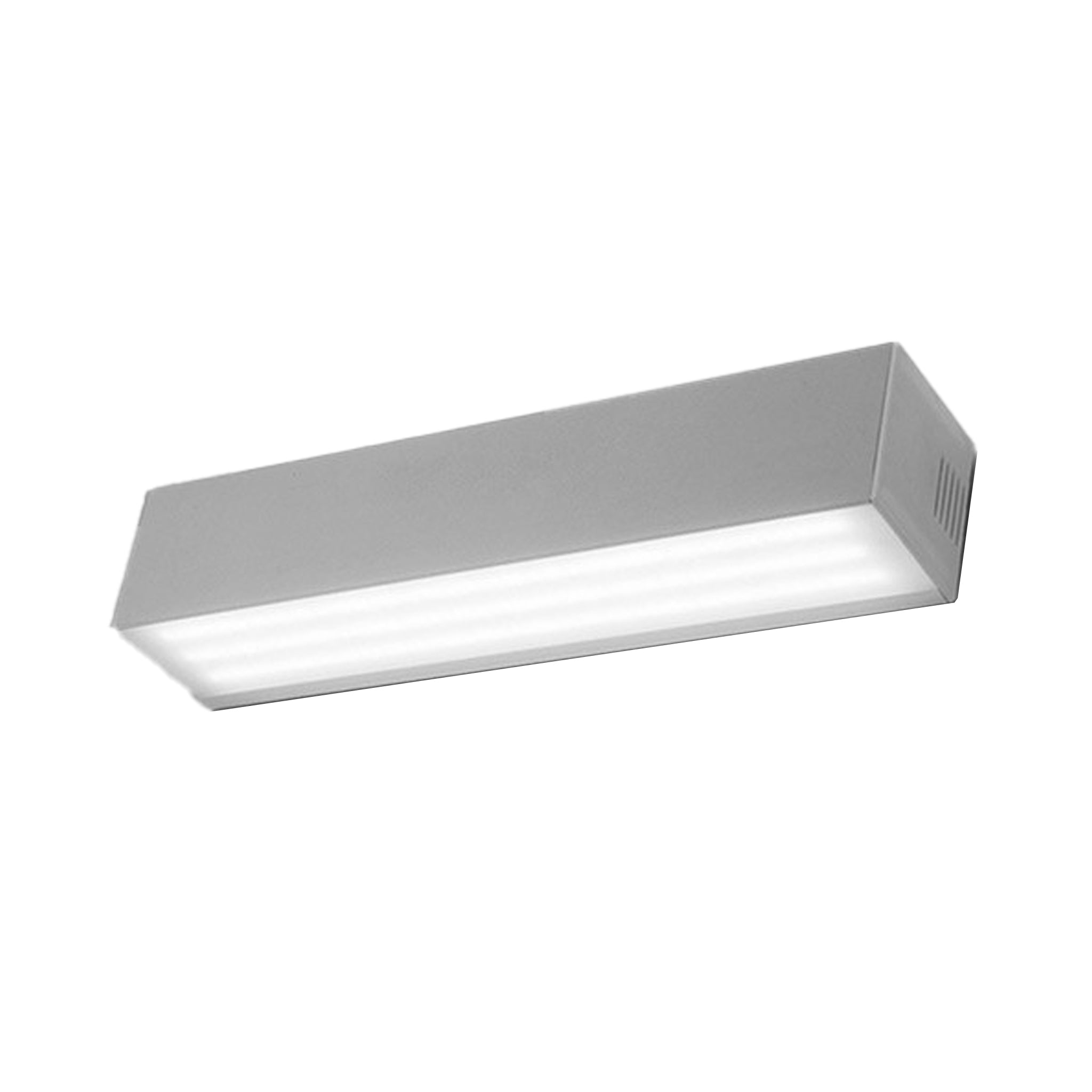

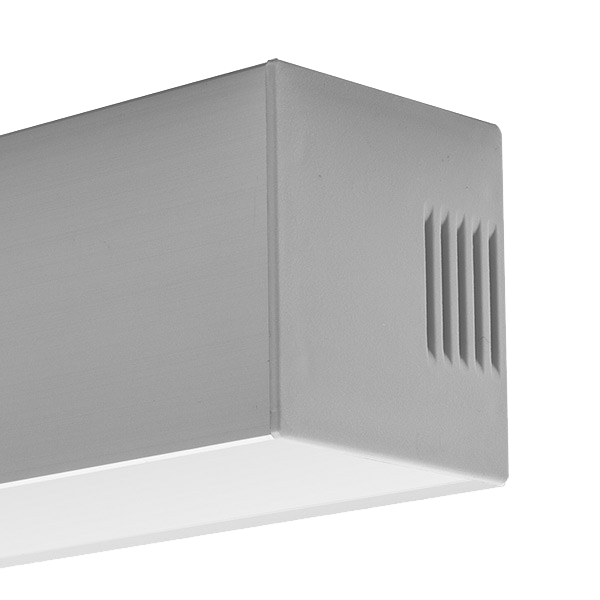

Flex Dual Channel

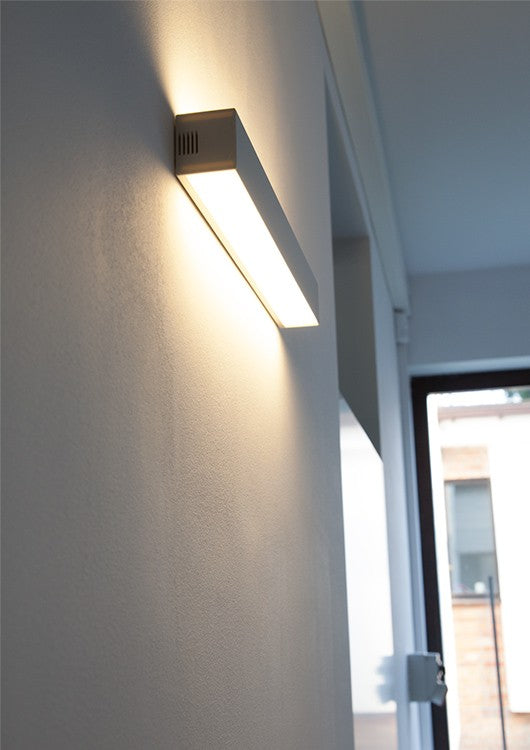

Flex Dual Channel is a clean, anodized aluminum channel that allows you to mount up to three parallel runs of Flex tape and direct their output in opposing directions (usually up and down).nbsp; Opal polycarbonate lenses help to homogenize the output.nbsp;

Compatible with:
Flex One HO Interior
Flex One SO Interior
Flex Eco Interior
Ai Flex
Flex Spectrum Interior
UPC: 815853025243SKU: FLK918

Downloads

Filename Document type File type
Flex Dual Channel Spec Sheet - May 2025 Specification Sheet PDF
Flex Dual Channel User Guide User Guide PDF
Flex Tube Dual Channel User Guide v3-0a User Guide PDF

Tech Specs

Finish
Finished Aluminum
Length
3.28' (1m), cut to length as required
Material
Double anodized aluminum, polycarbonate lenses
Mounting
Via included mounting strip
Weight
0.45 lbs (0.204 kg)
Ambient Temperature Range
32° F to 104° F (0° C to 40° C)
Ingress Protection
IP22, dry location
