Flex 45 Degree Channel

Name: Flex 45 Degree Channel
Brand: Acclaim
SKU: FLX 45D
Availability: InStock

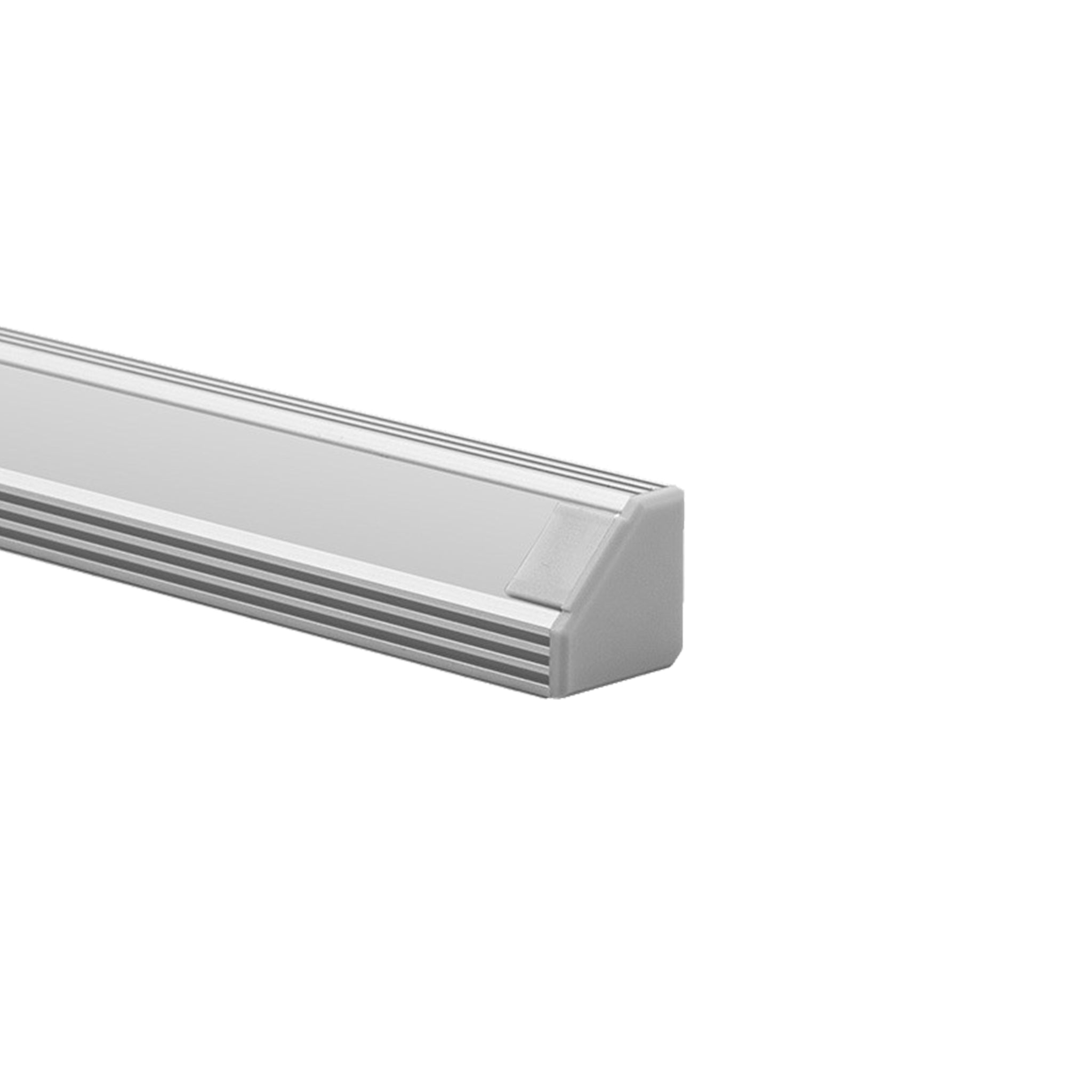

The Flex Channel 45 Degree is an anodized aluminum channel which allows for a 45 degree mounting of interior Flex Tape products, in conjunction with optional lenses.

Compatible with:

Flex Eco Interior

Ai Flex Interior

Flex One HO SO Interior

SKU: FLX 45D

Downloads

Filename	Document type	File type
Flex 45 Degree Channel Specification Sheet - May 2025	Specification Sheet	PDF
Flex 45 Degree Channel User Guide v3-0a	User Guide	PDF

Tech Specs

Finish

Finished Aluminum

Length

3.28' (1m) or 6.56' (2m), cut to length as required

Material

Double anodized aluminum, optional polycarbonate lenses

Mounting

Via optional stainless steel mount brackets

Weight

0.49 lbs (223g) per 3.28' (1m) length; 0.98 lbs (446g) per 6.56' (2m) length

Ambient Temperature Range

32° F to 104° F (0° C to 40° C)

Ingress Protection

IP22, dry location
