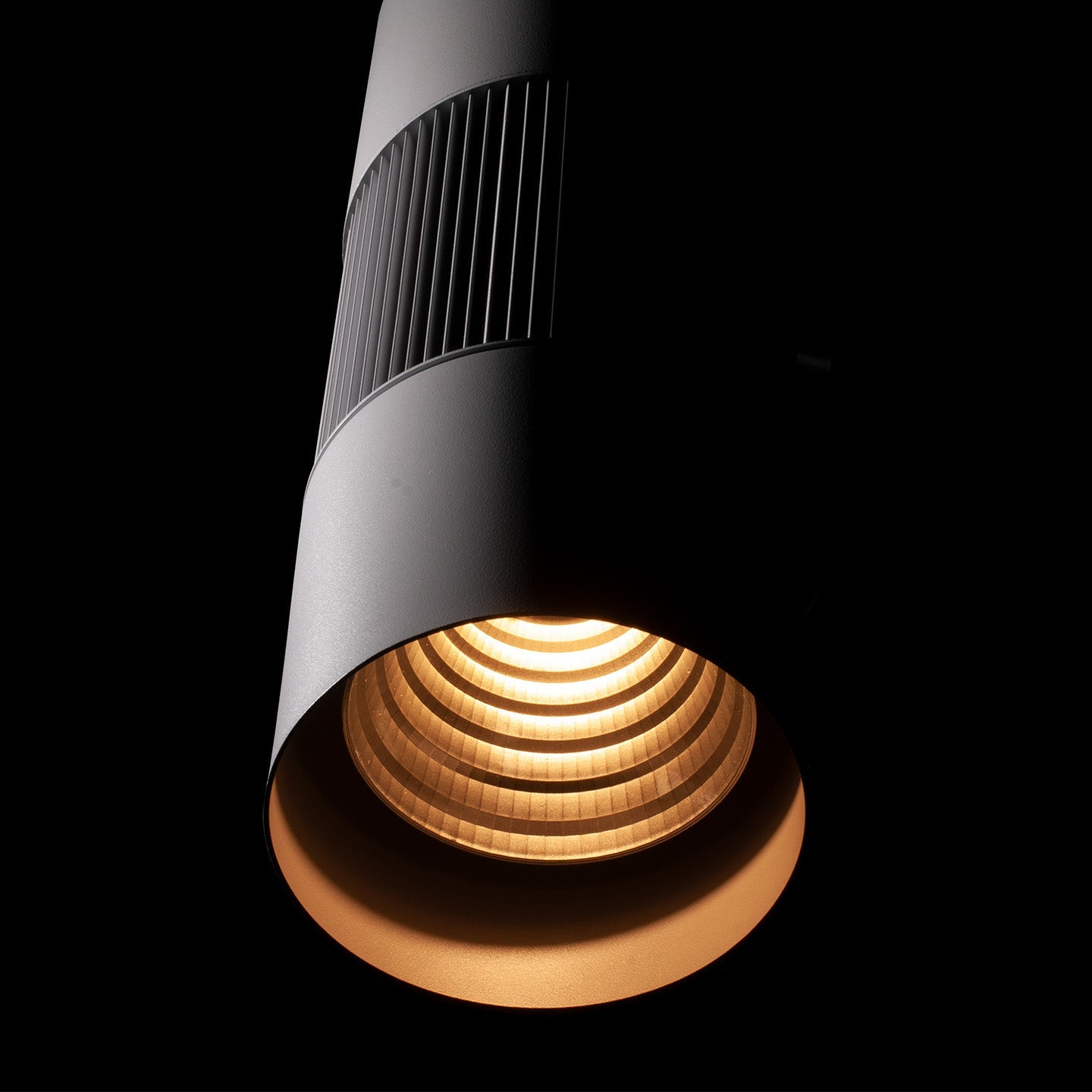

Cylinder One HO

Lumens: 11989
Power: 135W
TM-30: 88

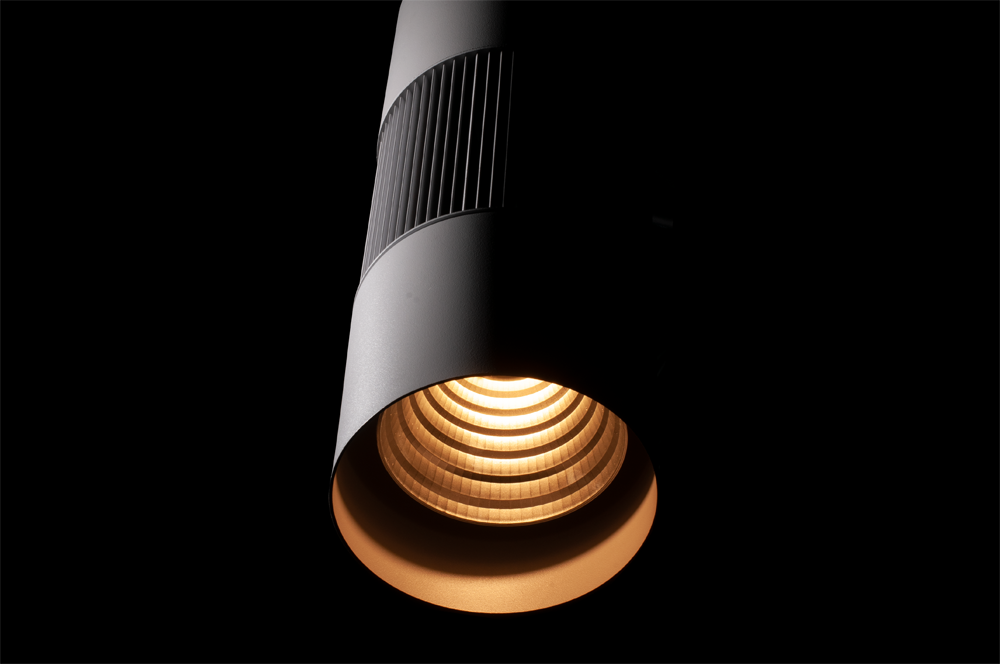

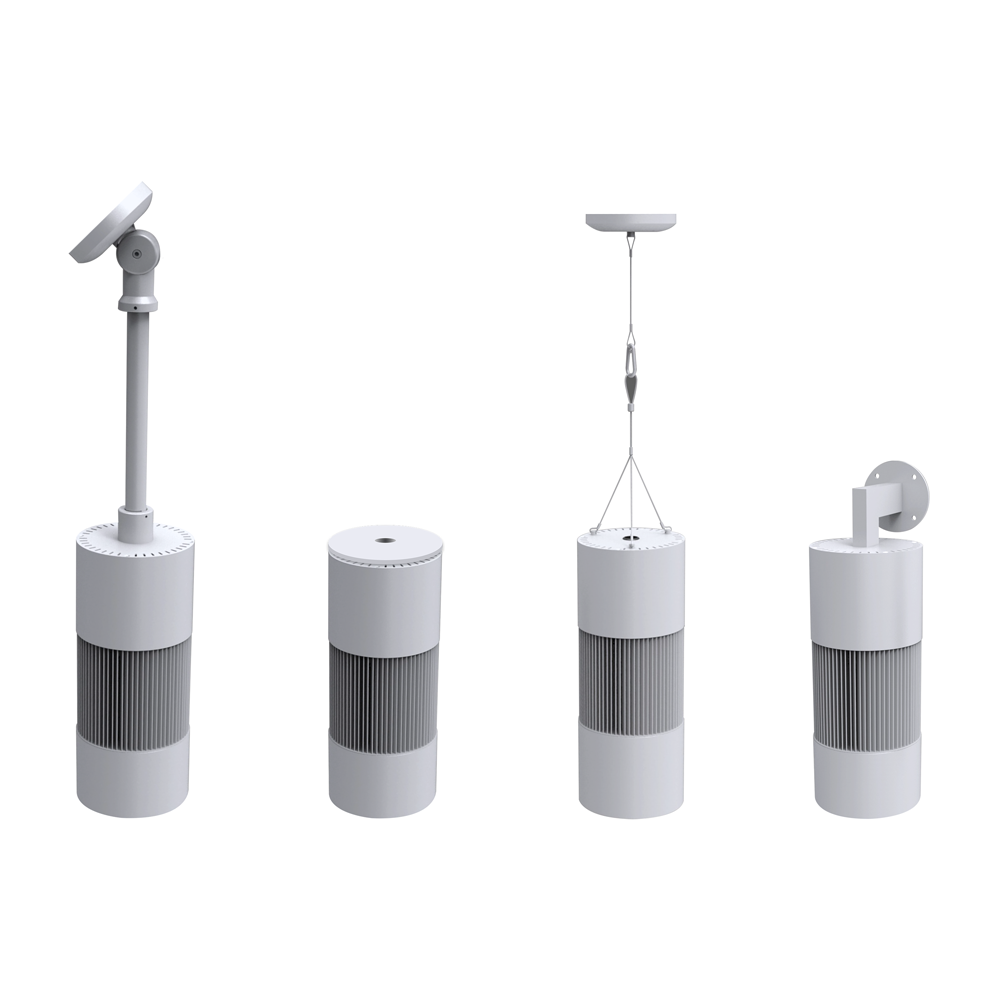

A 2019 PIA Innovation Award winner, Cylinder One HO is the industry leader in size and performance. With a very high output and total aperture of less than 6”, it’s in a class all its own for long-throw applications. It features an internal 100-277VAC power supply, onboard DMX+RDM driver, and each unit includes Acclaim’s Aria wireless DMX technology as a standard feature. Cylinder One offers several quick-change reflectors, as well as various mounting configurations including surface mount, 3/4’” NPS pendant mount, aircraft cable mount and wall mount configurations.

SKU: COH#-CHM##-CHC#-RFH#-1

Featured Technologies

01

Acclaim Modular Systems

Born from decades of field experience and engineered without compromise, Acclaim Modular Systems revolutionize how professionals approach lighting projects. Every fixture is built-to-order in our Los Angeles headquarters with complete modularity at its core. Swap optics, change colors, upgrade power; all while maintaining the same housing. No more choosing between perfect specs and impossible deadlines. With AMS, every configuration ships in days, not months.

02

Aria Wireless

Break free from the limitations of traditional control wiring. Aria brings professional-grade wireless DMX to the most demanding environments, transmitting crystal-clear signals up to 2700 feet through rain, snow, and around obstacles. IP66-rated for permanent outdoor installation, Aria-enabled fixtures communicate directly with the transmitter, creating resilient networks that adapt to your project's evolving needs.

01

Acclaim Modular Systems

Born from decades of field experience and engineered without compromise, Acclaim Modular Systems revolutionize how professionals approach lighting projects. Every fixture is built-to-order in our Los Angeles headquarters with complete modularity at its core. Swap optics, change colors, upgrade power; all while maintaining the same housing. No more choosing between perfect specs and impossible deadlines. With AMS, every configuration ships in days, not months.

02

Aria Wireless

Break free from the limitations of traditional control wiring. Aria brings professional-grade wireless DMX to the most demanding environments, transmitting crystal-clear signals up to 2700 feet through rain, snow, and around obstacles. IP66-rated for permanent outdoor installation, Aria-enabled fixtures communicate directly with the transmitter, creating resilient networks that adapt to your project's evolving needs.

Downloads

Filename	Document type	File type
Cylinder One HO Specification Sheet - July 2025	Specification Sheet	PDF
Cylinder One guide v1-2a	User Guide	PDF
Cylinder One HO Revit File	Revit Files	RFA
Cylinder One HO IES	IES Files	ZIP
Cylinder One HO 2D Drawings	Drawings	ZIP
Cylinder One HO dBA Noise Test	Certifications	PDF

Tech Specs

Certifications

ETL, CE

Operating Voltage

100 to 277VAC, 50/60Hz

Power Consumption

135W

Control

0-100% dimming via wired DMX (with RDM configuration) plus built-in Aria™ Wireless System

Lumen Maintenance

L70 150,000 hours (@ 25° C)

Optics

15° x 15°, 22° x 22°, 40°x 40°, 70° x 70°

Output

Up to 12,000 lumens, 99,000 max candela

Connection

Attached 20' (6.09m) AC power cable (18 AWG x 3) plus DMX/RDM cable (24 AWG x 5)

Emitters

2700K, 3000K, 3500K or 4000K

Finish

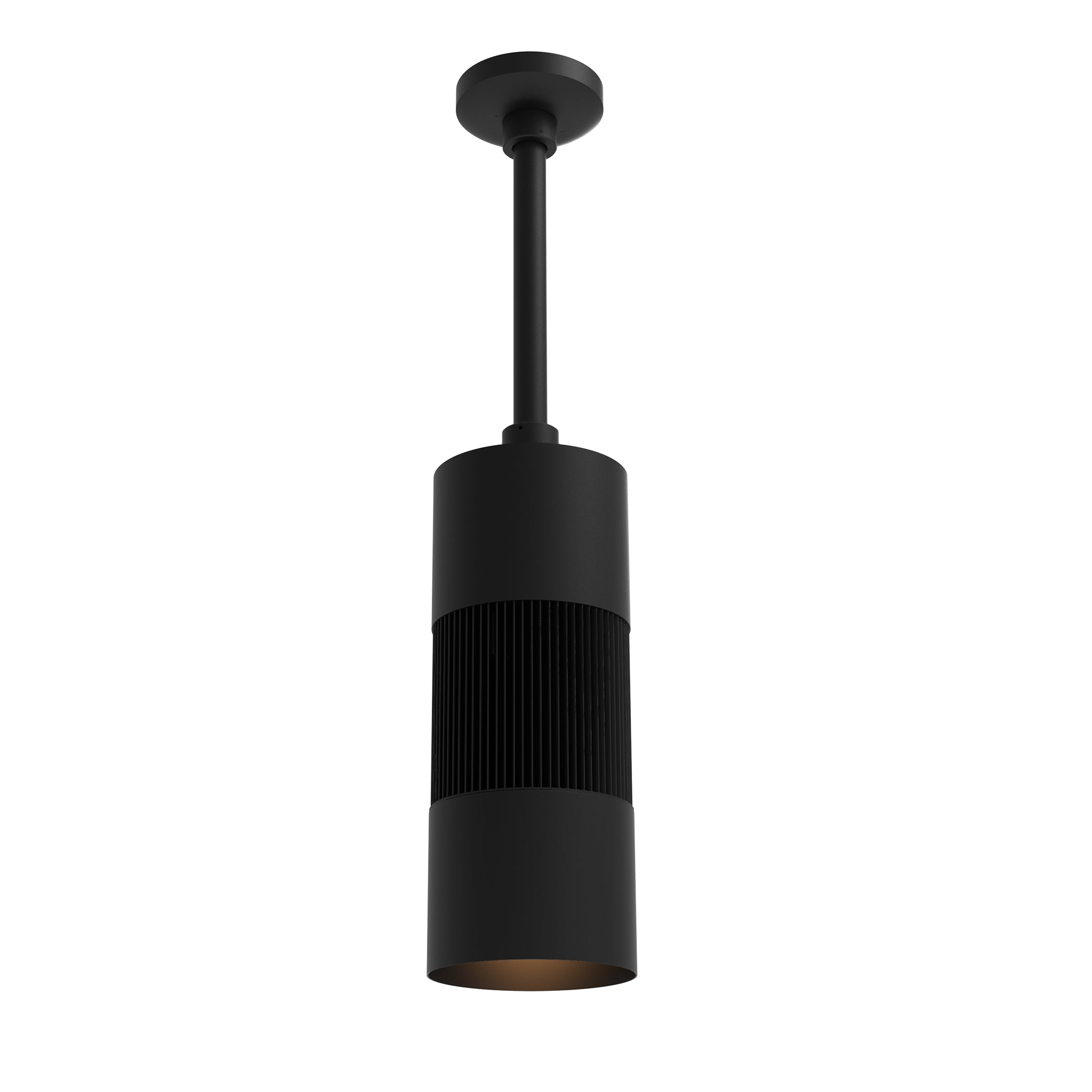

Gray standard (RAL 7047), black (RAL 9005), white (RAL 9003) or custom colors (provide RAL #)

Material

Aluminum, acrylic lens (optional)

Mounting

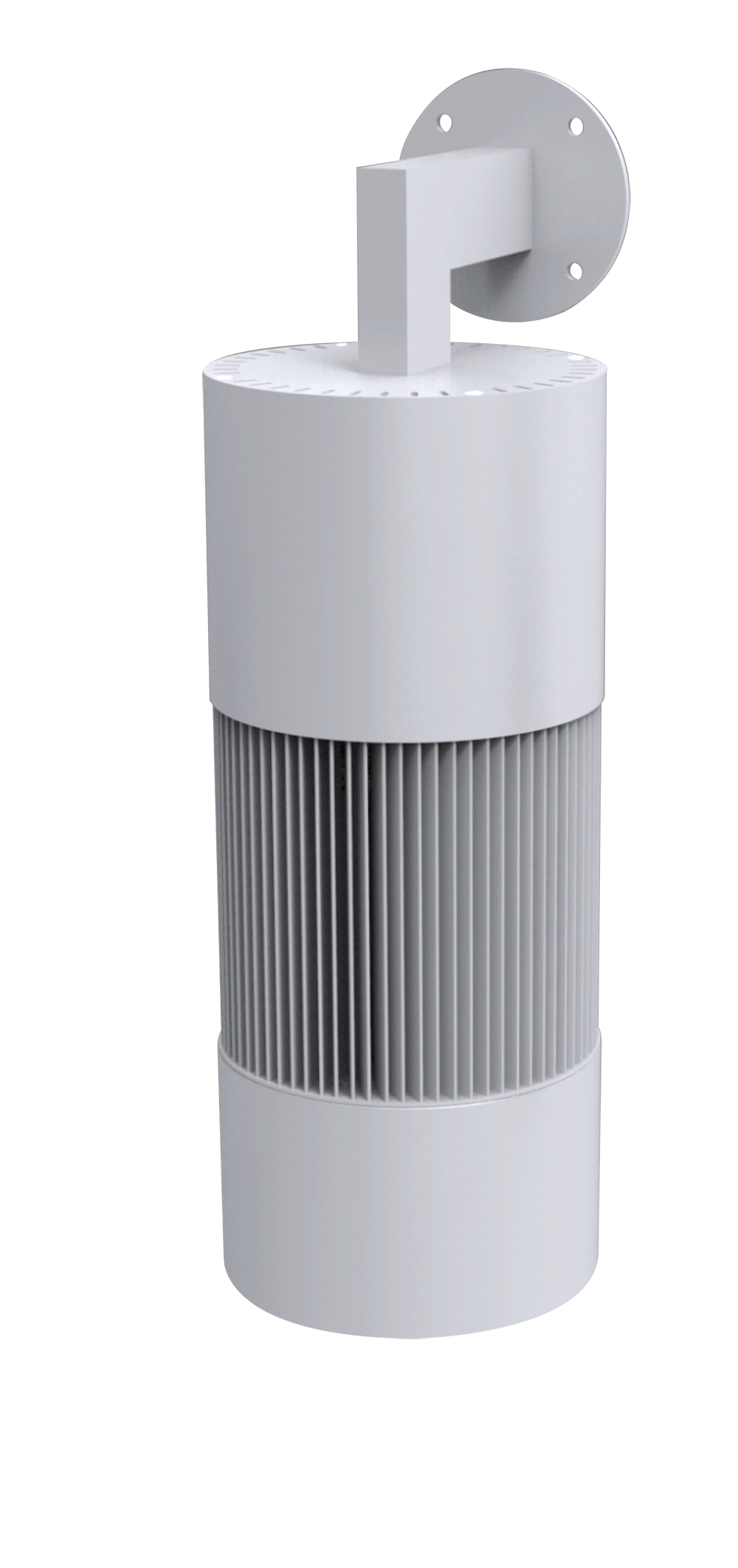

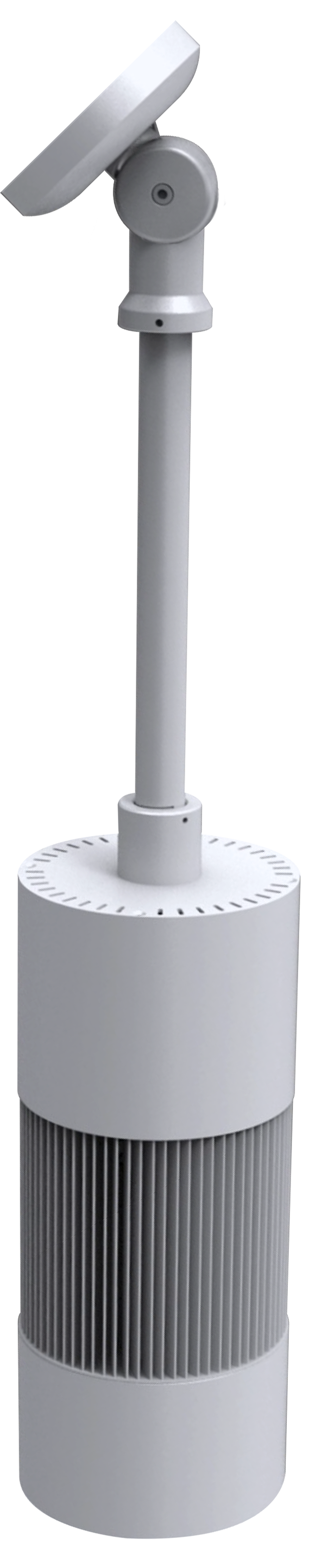

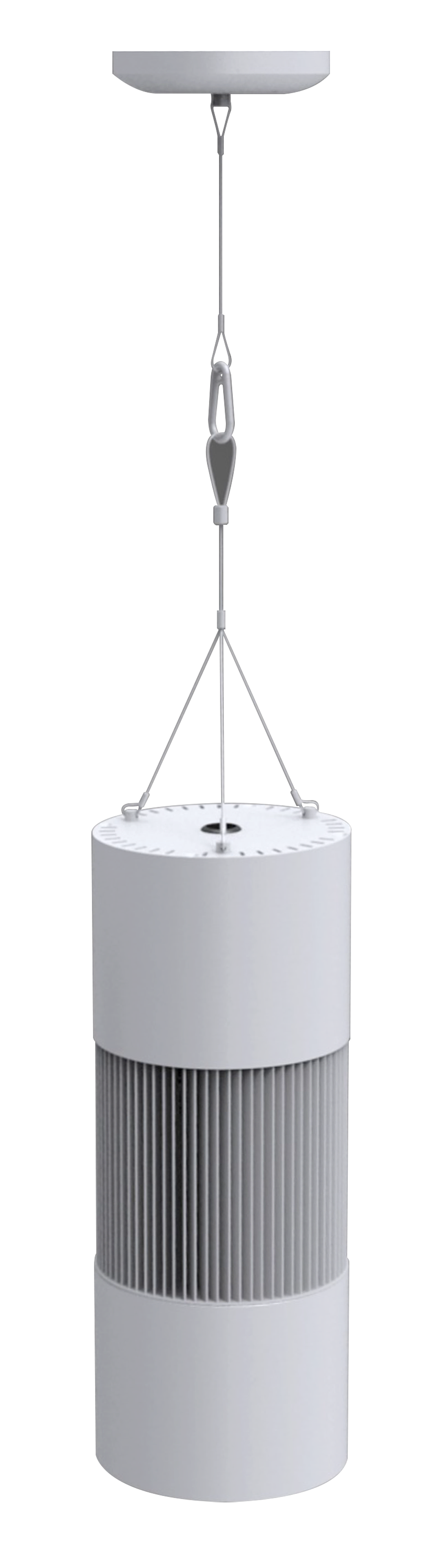

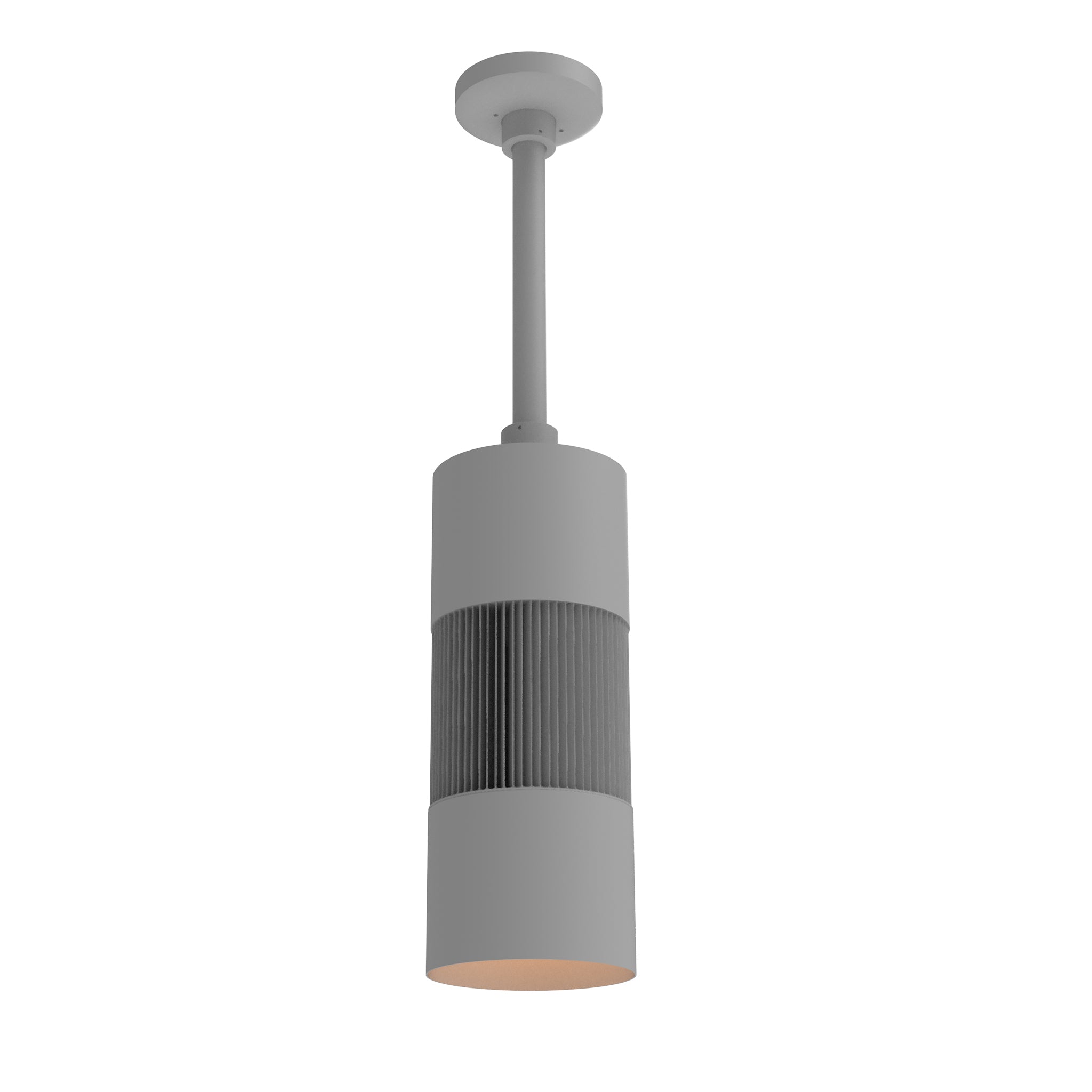

Surface mount bracket standard, ¾" NPS pendant mount, aircraft cable, or wall mount

Trim Options

Full aluminum cutoff or illuminated acrylic ring

Weight

12.4 lbs (5.6kg)

Ambient Temperature Range

-4° F to 113° F (-20° C to 45° C)

Impact Protection

IK08, protection against 5 joule impact (30cm distance)

Ingress Protection

IP40, dry location

Emergency Use

Compatible with centralized backup systems as a directly controlled emergency luminaire

Maximum Fixtures In Series

32 via DMX input/output, power local to each fixture
