Specification highlights

Lumens Per Foot
167
Power
8W
TM-30
84

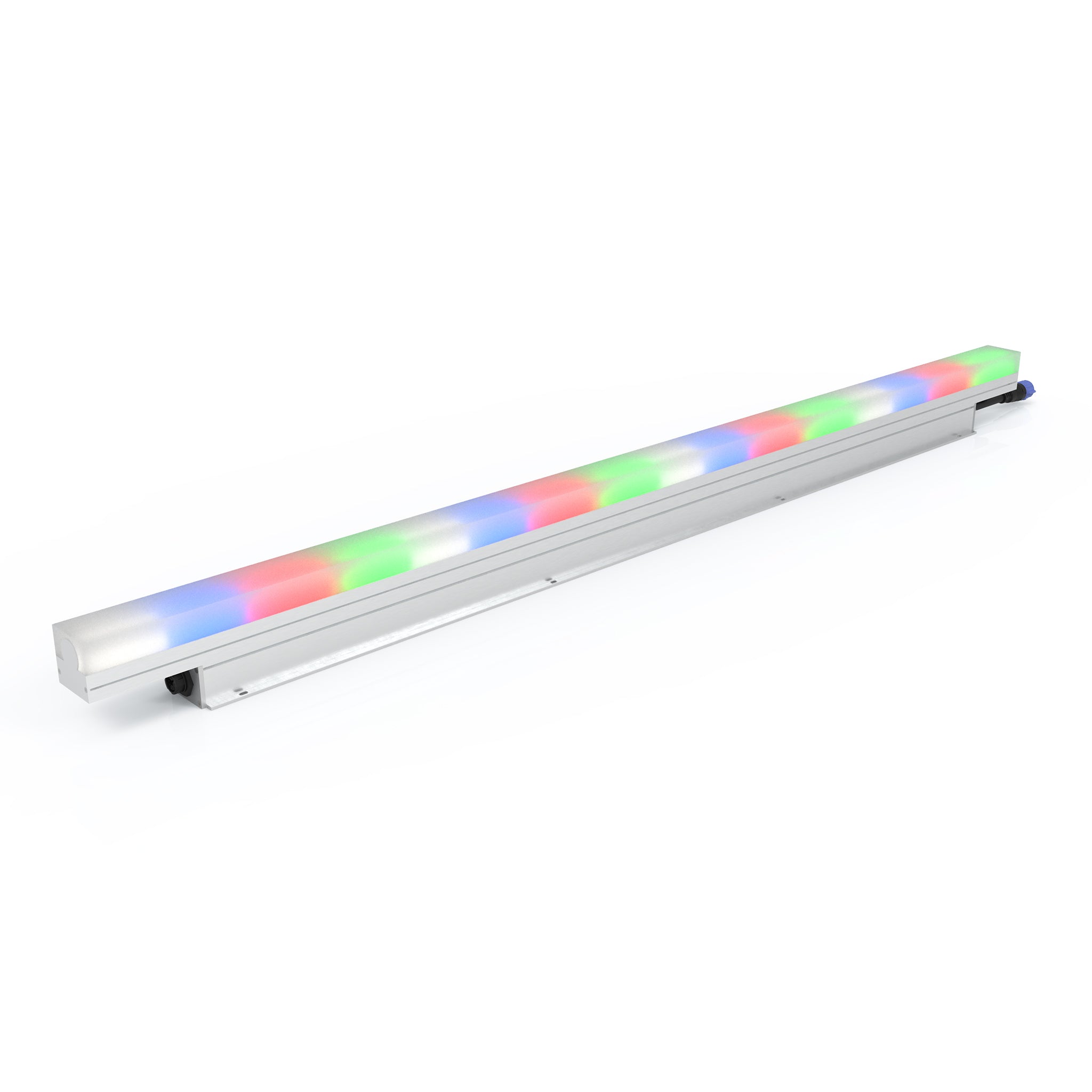

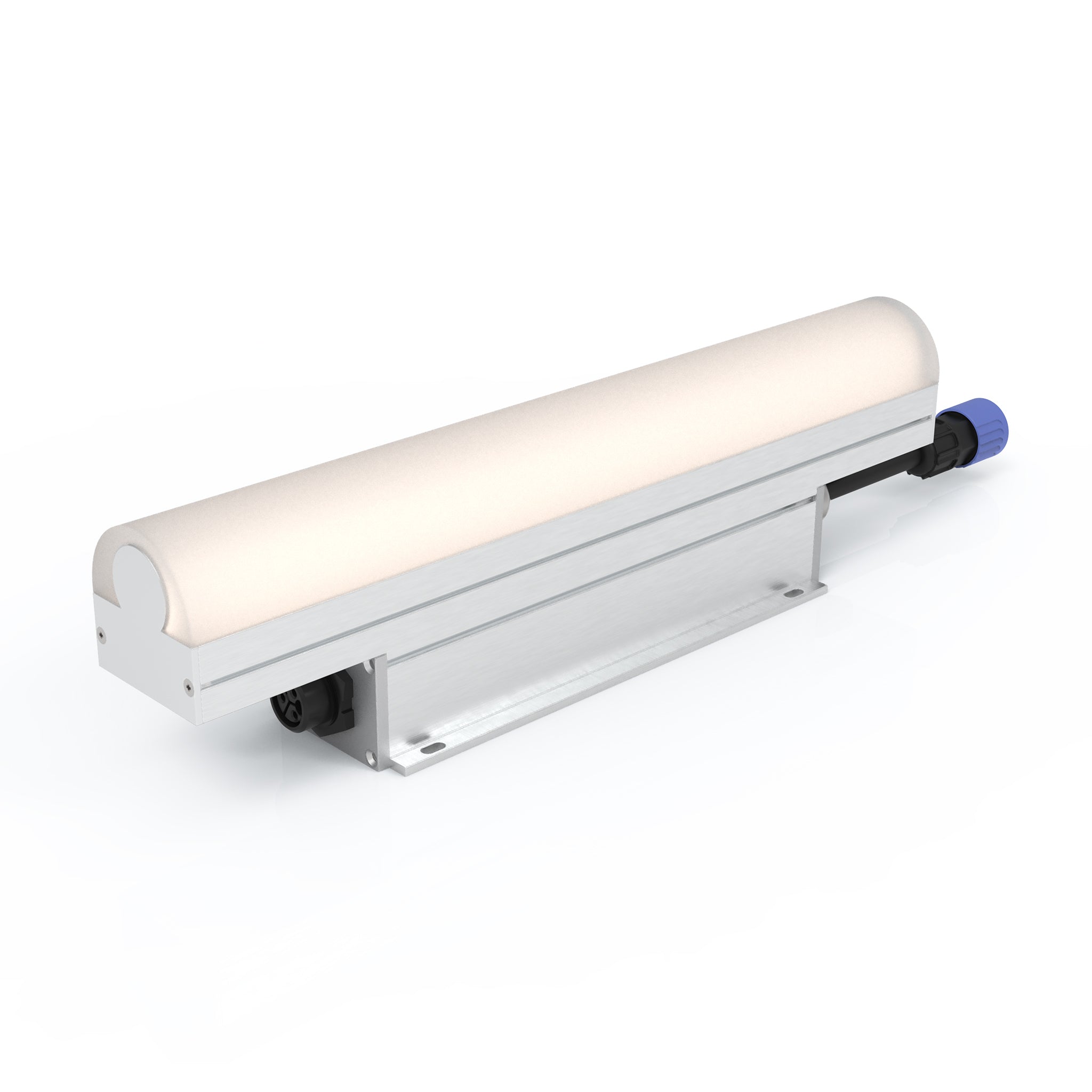

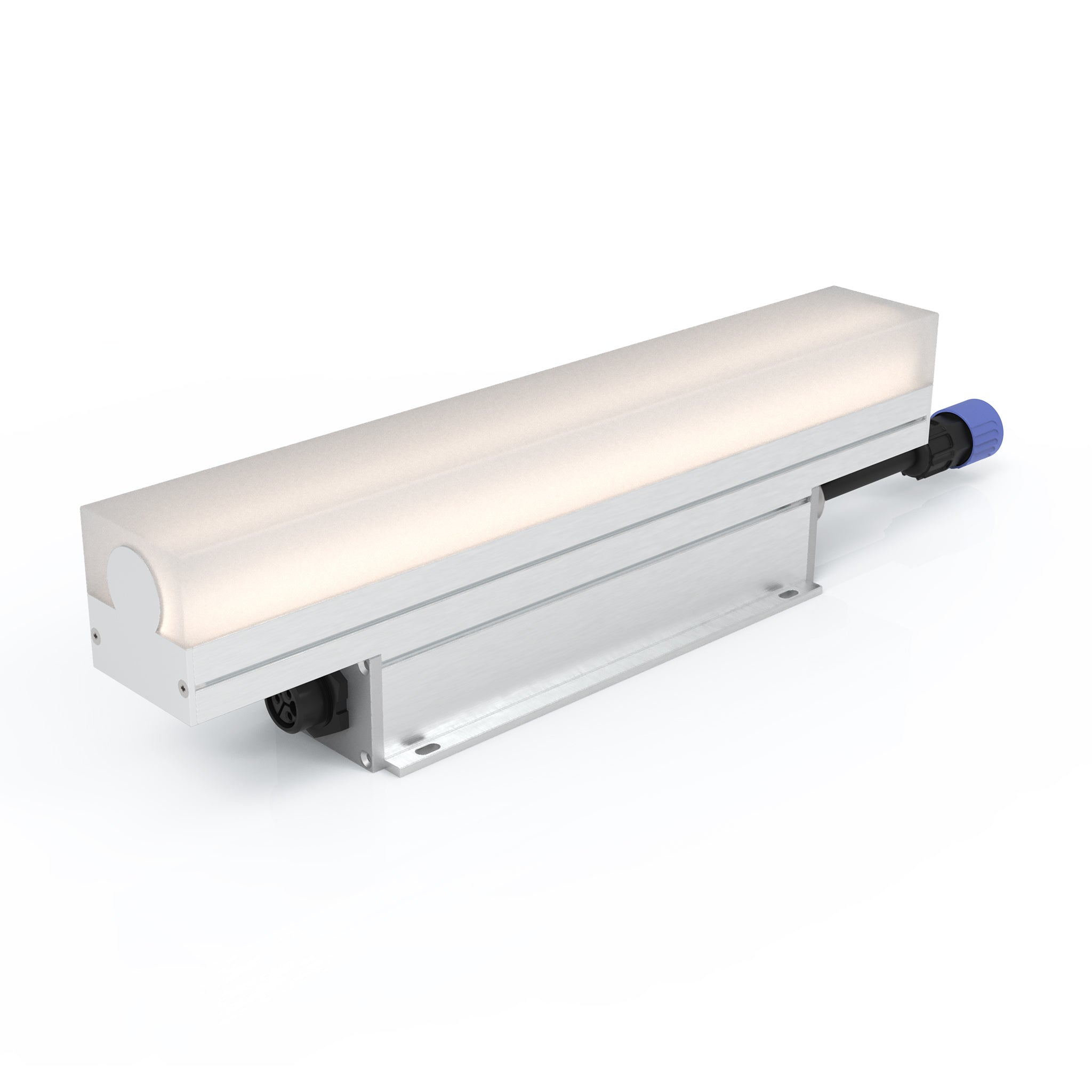

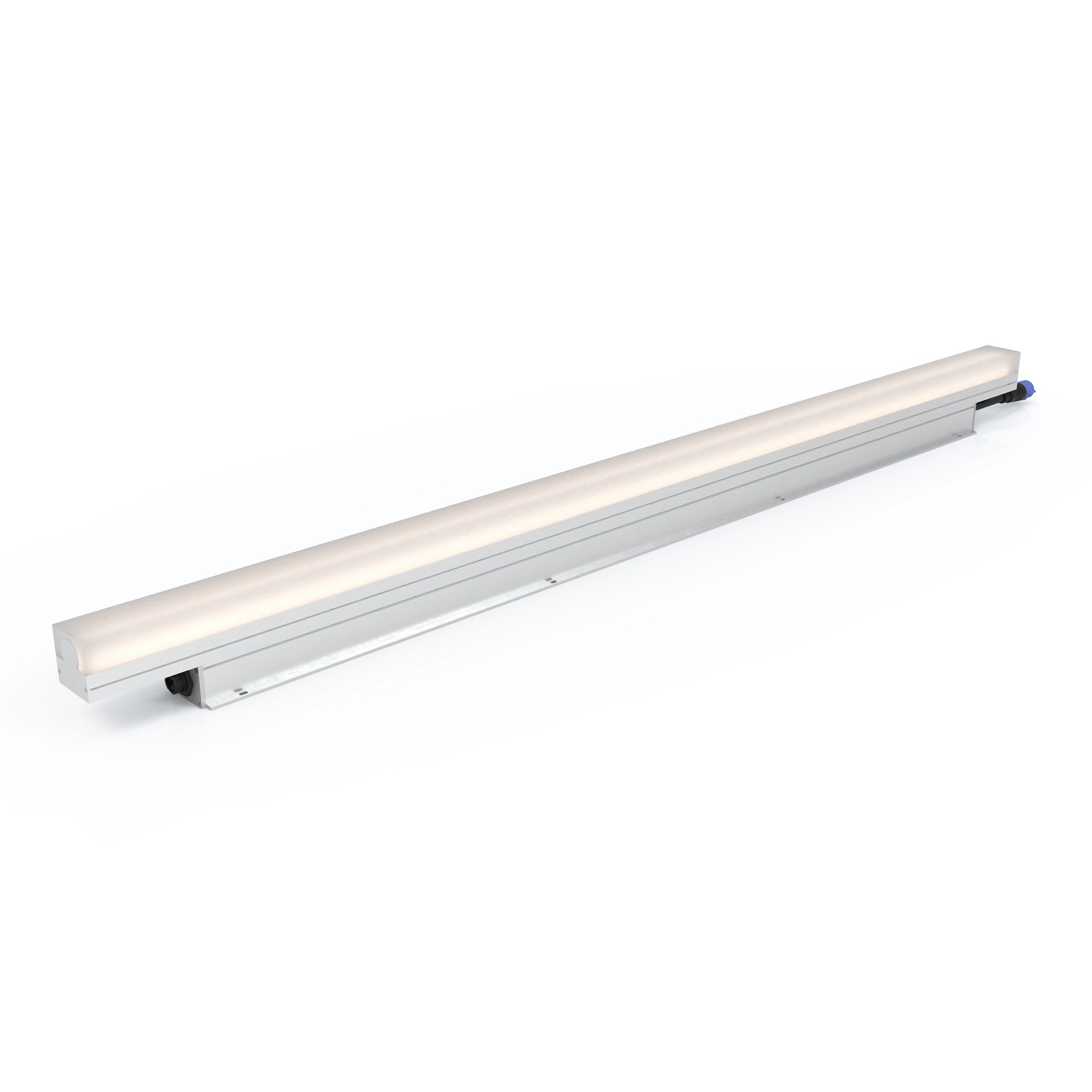

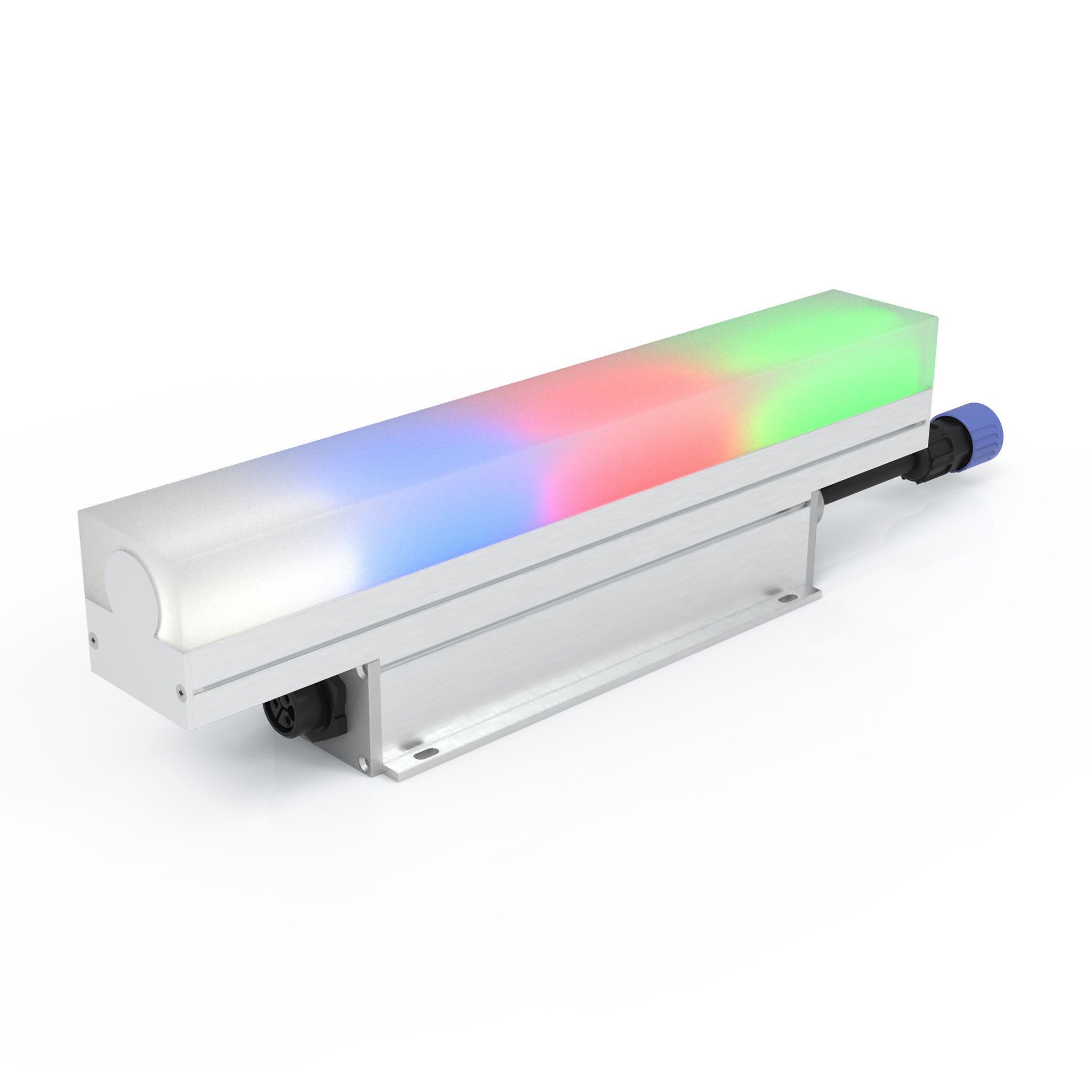

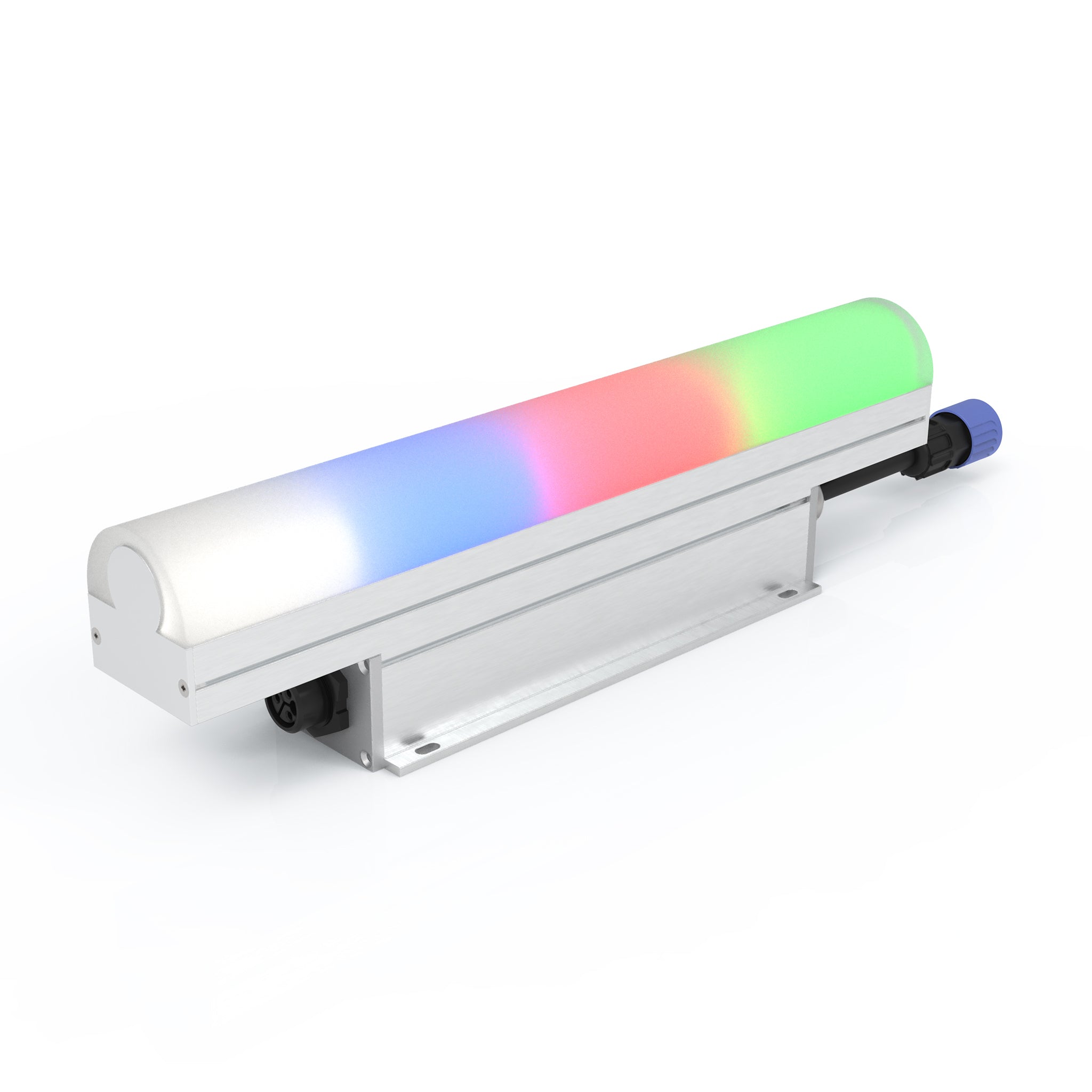

Pixel Bar is an outdoor rated, pixel controllable, direct view LED fixture. It is available with a rounded or flat diffused lens, is IP66 rated, and has an internal 90-277VAC auto switching power supply. Available in RGBW, RGBA, dynamic white or single color white, it is ideal for any interior or exterior application requiring seamless strips of light and AC power.
SKU: PBA-24#-#T#N

Featured Technologies

01

Spectrum Four

Why choose between color and white when you can have both perfected? Spectrum Four's revolutionary quad-die architecture blends dedicated 3000K white with calibrated blue to deliver any white temperature from warm residential to cool commercial (3000K-7000K), all while maintaining >80 CRI. Switch seamlessly to saturated colors, clean white CCTs or delicate pastels, all from a single, intelligent light source.
01

Spectrum Four

Why choose between color and white when you can have both perfected? Spectrum Four's revolutionary quad-die architecture blends dedicated 3000K white with calibrated blue to deliver any white temperature from warm residential to cool commercial (3000K-7000K), all while maintaining >80 CRI. Switch seamlessly to saturated colors, clean white CCTs or delicate pastels, all from a single, intelligent light source.

Configurator

Translation missing: en.sections.configurator.configuration_code_section_screen_reader_header

Pixel Bar Pixel Bar
Configuration code
Configuration code
Emitters:
Lens Cover:

Downloads

Filename Document type File type
Pixel Bar Specification Sheet - September 2025 Specification Sheet PDF
Pixel Bar guide v1-2b User Guide PDF
Pixel Bar Revit File Revit Files RFA
Pixel Bar IES IES Files ZIP
Pixel Bar 2D Drawings Drawings ZIP

Tech Specs

Certifications
ETL, CE
Operating Voltage
100-277VAC, 50/60Hz
Power Consumption
8W per foot
Lumen Maintenance
L70 @ 150,000 Hours (25º C)
Optics
168º
Emitters
Spectrum RGBW (W=3000K), RGBA, Dynamic White (2700K-6000K)
Finish
Finished aluminum, black (RAL 9005), white (RAL 9003) or custom colors (provide RAL #)
Length
1' (305mm) or 4' (1220mm)
Material
Aluminum body with glass top lens
Ingress Protection
IP66, wet location
Maximum Fixtures In Series
100’ interconnected

Related Products

Dyna Drum HO Color G2Dyna Drum HO Color G2
Dyna Drum HO Color G2
CanvasCanvas
Canvas
Pixel GrazePixel Graze
Pixel Graze

Related Projects

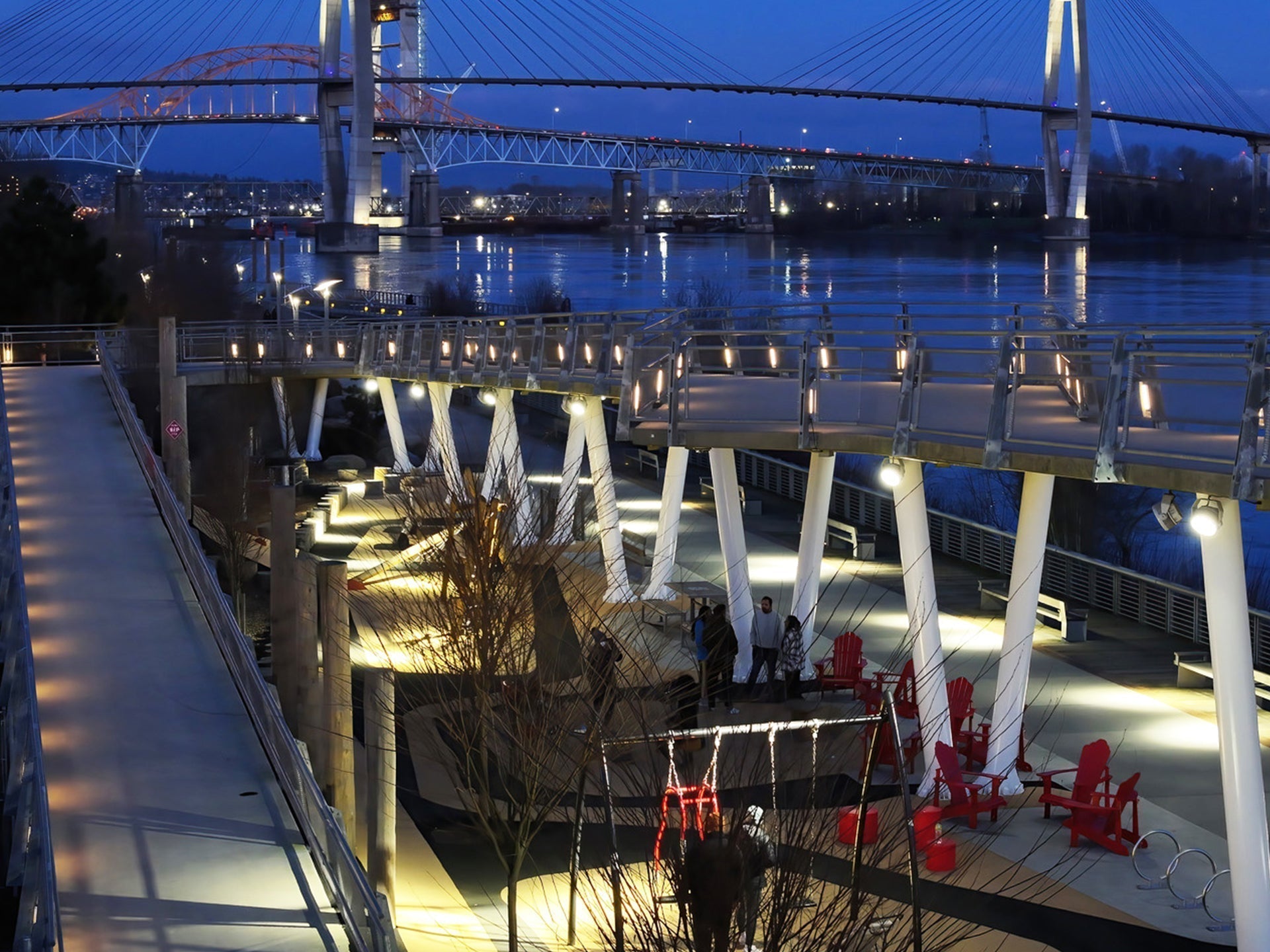

Pier West
