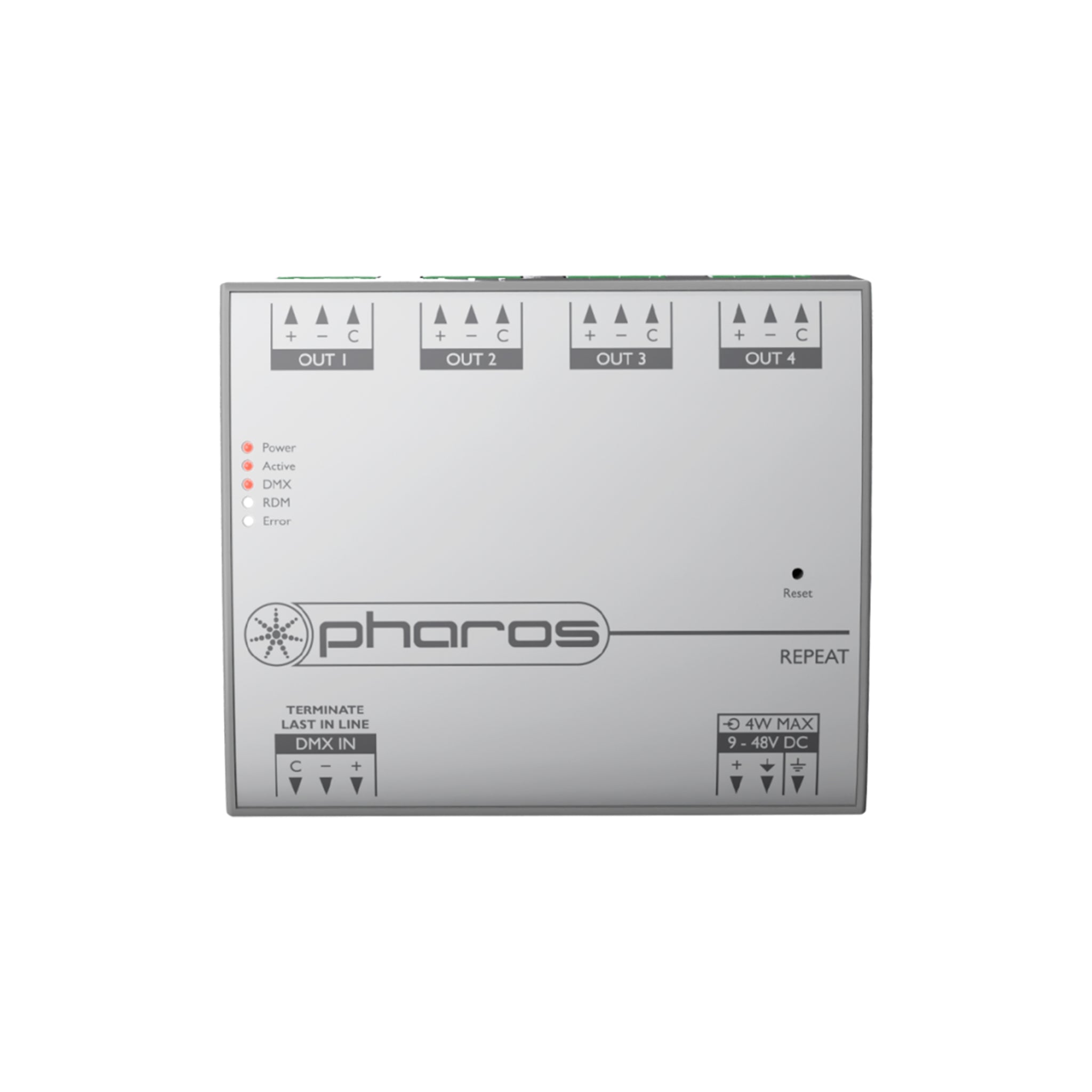

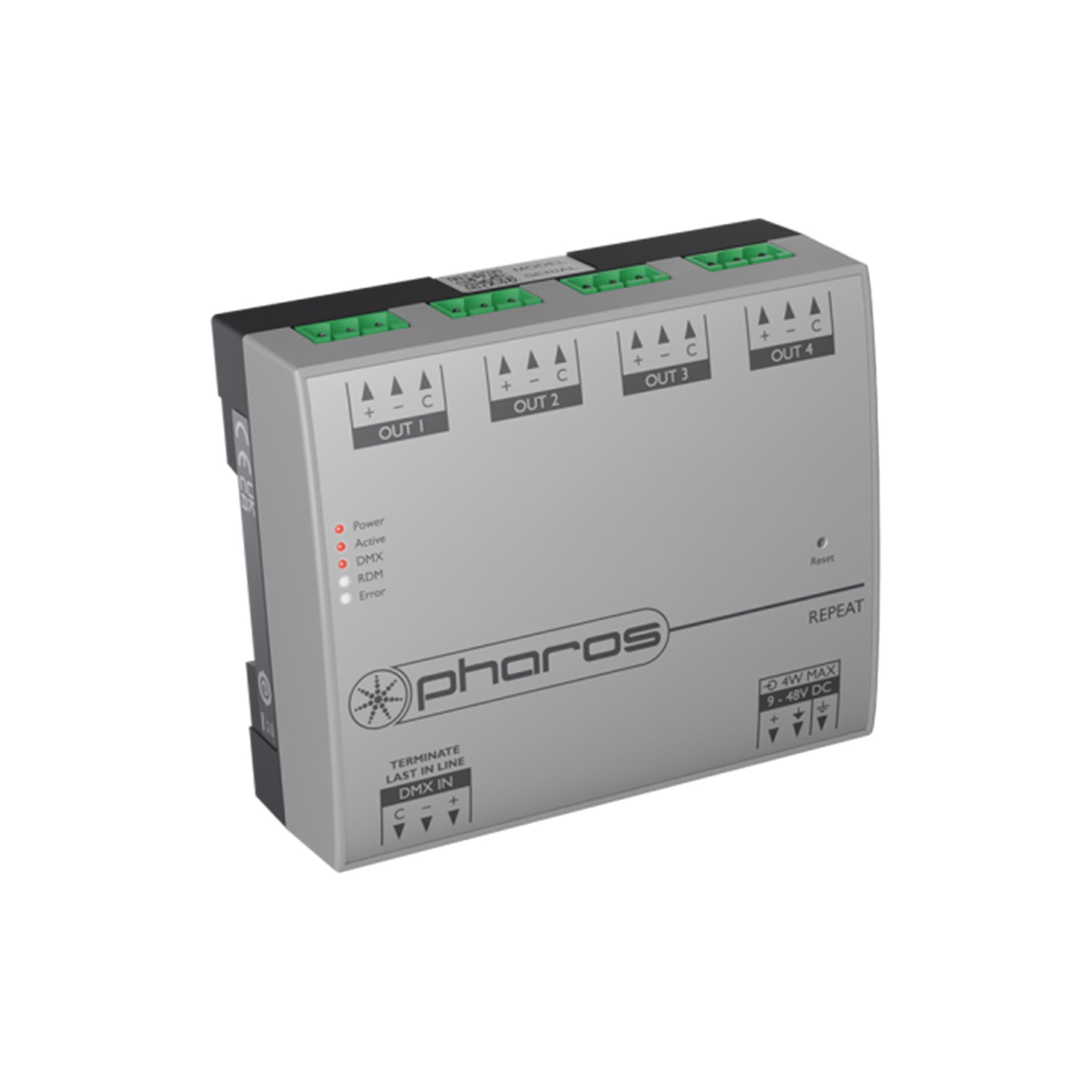

Pharos Repeat is a convenient DMX512 splitter / repeater with four output ports compatible with the RDM standard to provide DMX distribution to luminaires. The incoming isolated DMX signal from your controller is regenerated four times on isolated, self-healing ports for distribution to your fixtures. DMX splitters are an essential requirement for most control systems, allowing multiple separate cable runs from a single DMX output and ensuring electrical isolation. This DIN rail mount repeater with install-friendly connectors requires a power supply in the range of 9 to 48V DC. Compatible with Pharos Designer and Pharos Expert systems.
Pharos Repeat
Sale price$0.00
Downloads
| Filename | Document type | File type |
|---|---|---|
| Pharos Repeat Specification Sheet | Specification Sheet |
Tech Specs
Certifications
UL, CE, UKCAOperating Voltage
9-48V DCPower Consumption
4W typicalSurge Protection
Self healing ports can withstand continuous AC voltage up to 300VDMX Input
1 x DMX512 port (ANSI E1.11-2024)DMX Output
4 x DMX512 ports (ANSI E1.11-2024)RDM
RDM pass-through compatibleRecovery
Recessed reset buttonAmbient Temperature Range
0°C to 50°C (32°F to 122°F)Ingress Protection
IP40Compatibility
Pharos Designer & Pharos Expert controllers
