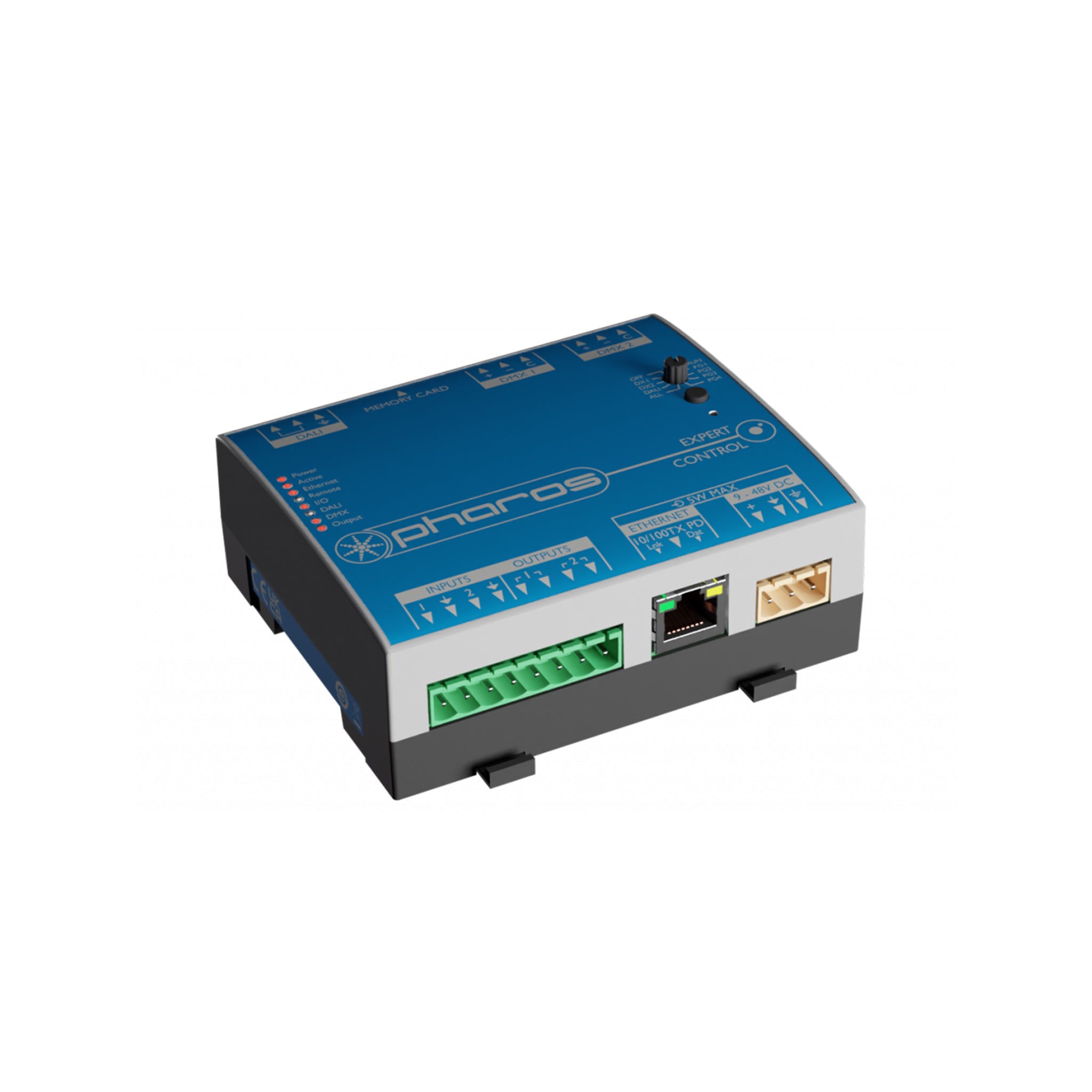

Pharos Expert Control
This product is MetaobjectDrop certified.
This product is MetaobjectDrop certified.
This product is MetaobjectDrop certified.
Specification highlights
- DMX Universes
- 1-6
- Input Voltage
- 9-48VDC
Benefit from Pharos expertise in dynamic architectural lighting with Pharos Expert, the award-winning, cost-effective control solution centred around a single, reliable, set-and-forget controller that’s easy to specify and install. The software is the expert, offering curated options for lighting control, scheduling and integration features.

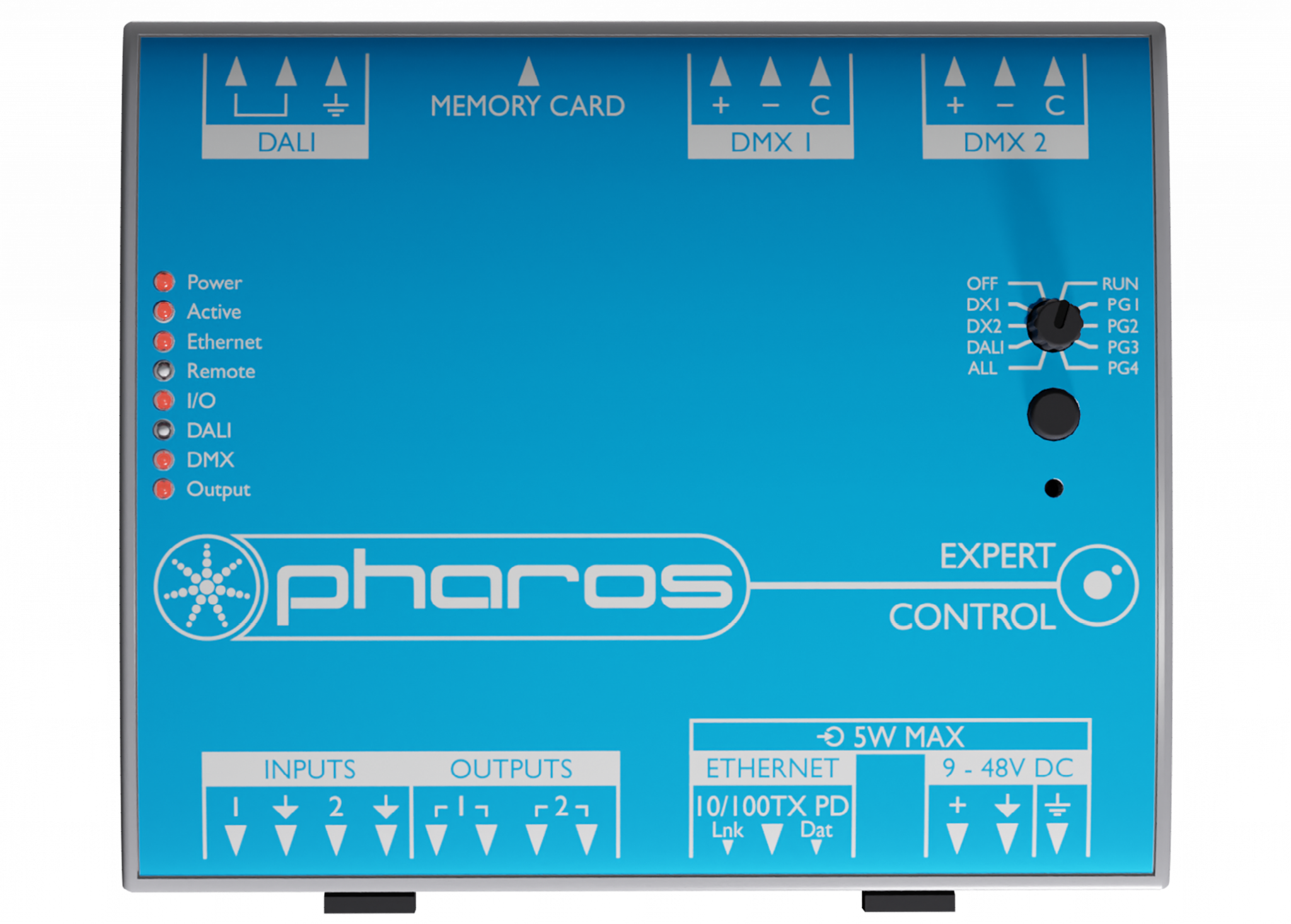

With DMX, DALI, and a couple of convenient contact closures and relays all on board, Expert Control provides up to 3072 channels and is ideal for architectural lighting that requires the benefits of dynamic lighting for intelligent single-scene-per-space playback.
Pharos Expert Control
Sale price$0.00
Downloads
| Filename | Document type | File type |
|---|---|---|
| Pharos Expert Control Specification Sheet | Specification Sheet | |
| expert_control_installation_instructions | User Guide | |
| Pharos Expert Touch 5 Specification Sheet | Specification Sheet | |
| Pharos Expert Touch 8 Specification Sheet |
Tech Specs
Certifications
UL, CE, UKCAOperating Voltage
9-48V DC or PoE (IEEE802.3af, Class 2)Power Consumption
4W typicalArt-Net
Art-Net I, Art-Net II and Art-Net 3DMX Output
2 ports (max 512 channels each) ANSI E1.11-2008Kinet
KiNET V1, V2, V3; PDS/Data Enabler discoveryRDM
Supports discovery and addressing via Expert softwareRecovery
Hardware watchdog and recessed reset buttonTouchscreen
Stylish auto-generated touchscreen interfaces available via free mobile app over local Wi-Fi (access point required) and, via Touch 5 and Touch 8, elegant installation-friendly PoE wall stationsWall Stations
Touch 5 & Touch 8Ambient Temperature Range
0°C to 50°C (32°F to 122°F)Ingress Protection
IP40
