AL Driver 4
Specification highlights
- PWM Channels
- 4
- Input Voltage
- 12-24VDC
- Output Voltage
- 96W

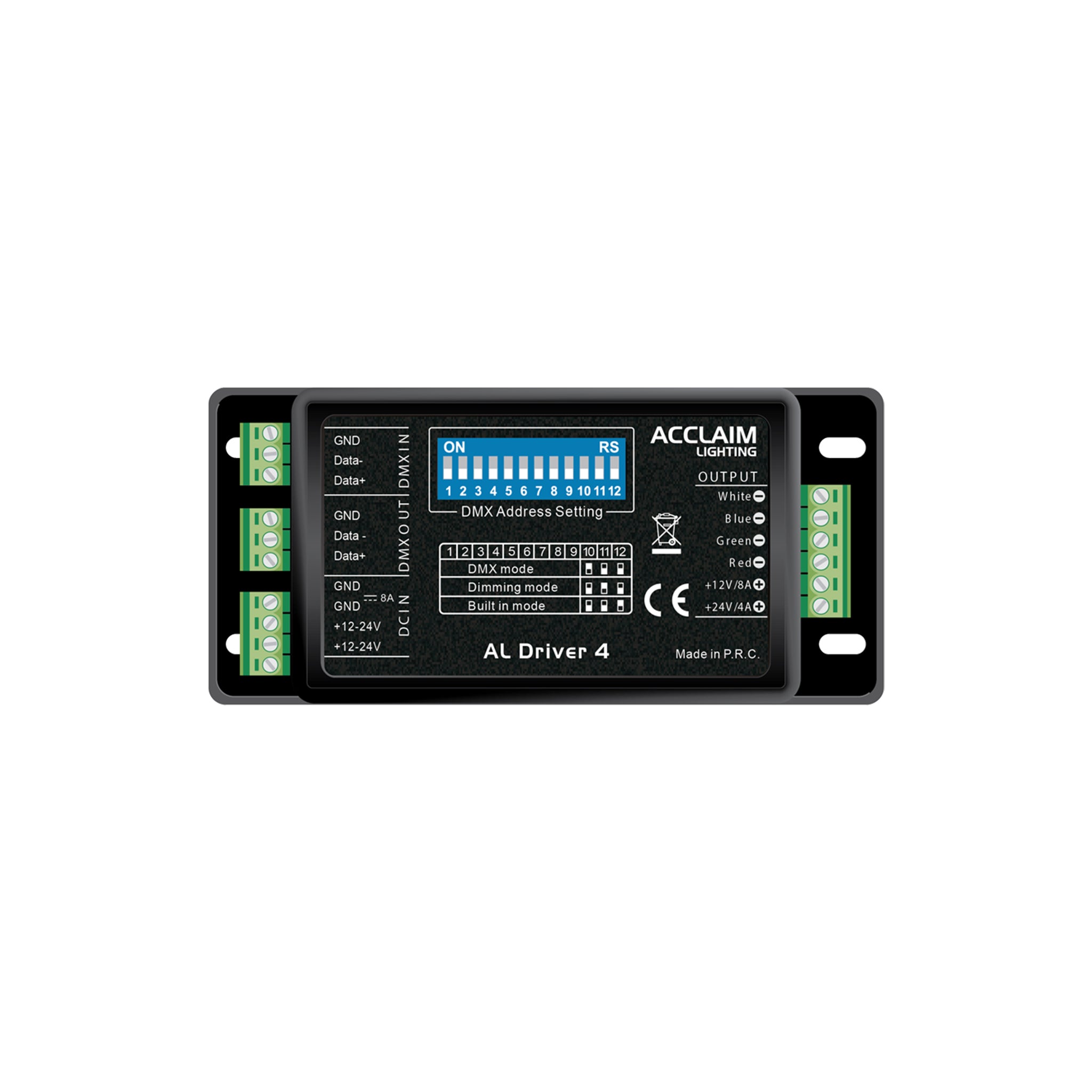

AL Driver 4 is a four-channel PWM dimming driver for low voltage LED products with a wired digital communication network. It can take a DC input from 12-24VDC and dims each channel via DMX. It can control up to 5A of multi-color LED products, and manual colors can be set in instances where external control is not desired.
AL Driver 4
Sale price$0.00
Downloads
| Filename | Document type | File type |
|---|---|---|
| AL Driver series guide v1-0b | User Guide | |
| AL Driver 4 2.0.1 | Specification Sheet | |
| AL Driver 4 - ATM | Approvals | |

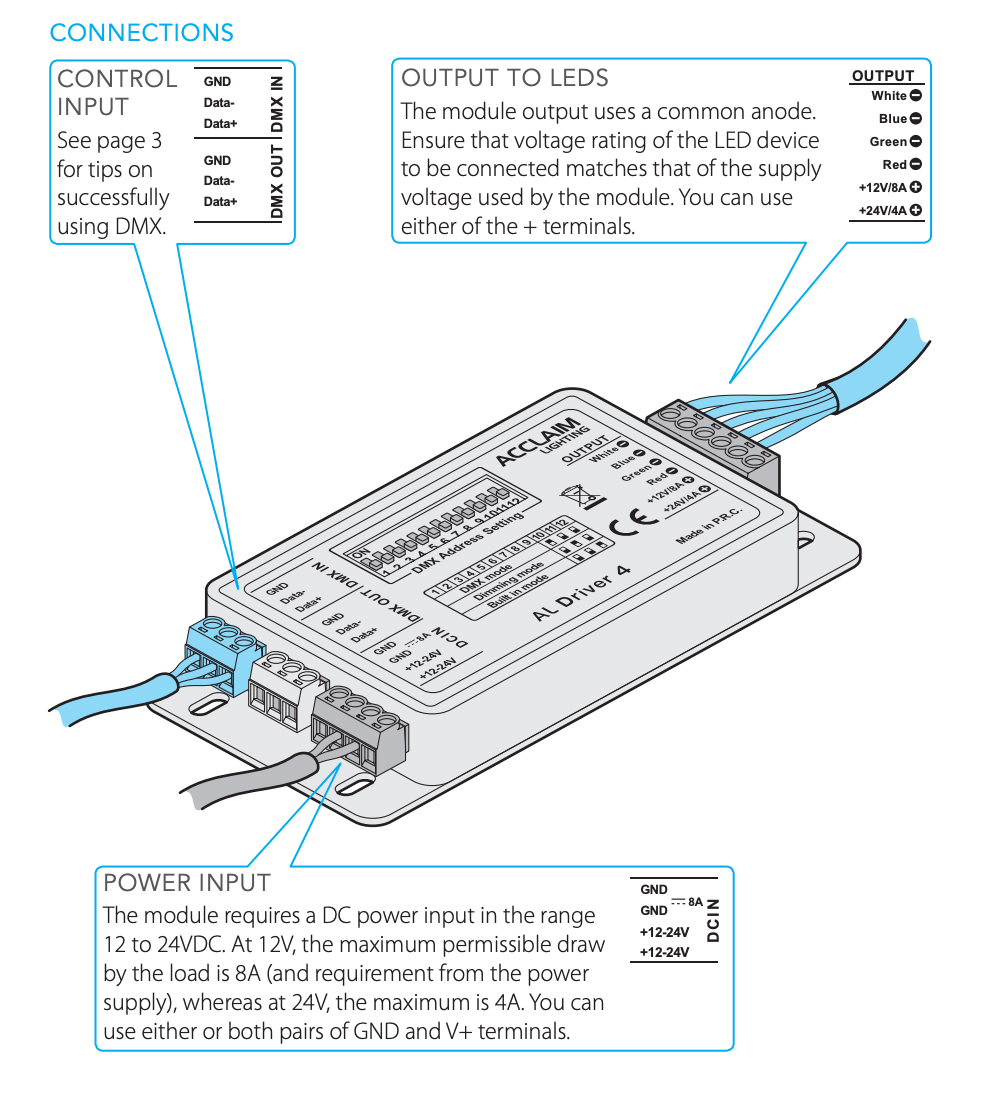

| AL Driver 4 wiring2 | Drawings | PNG |

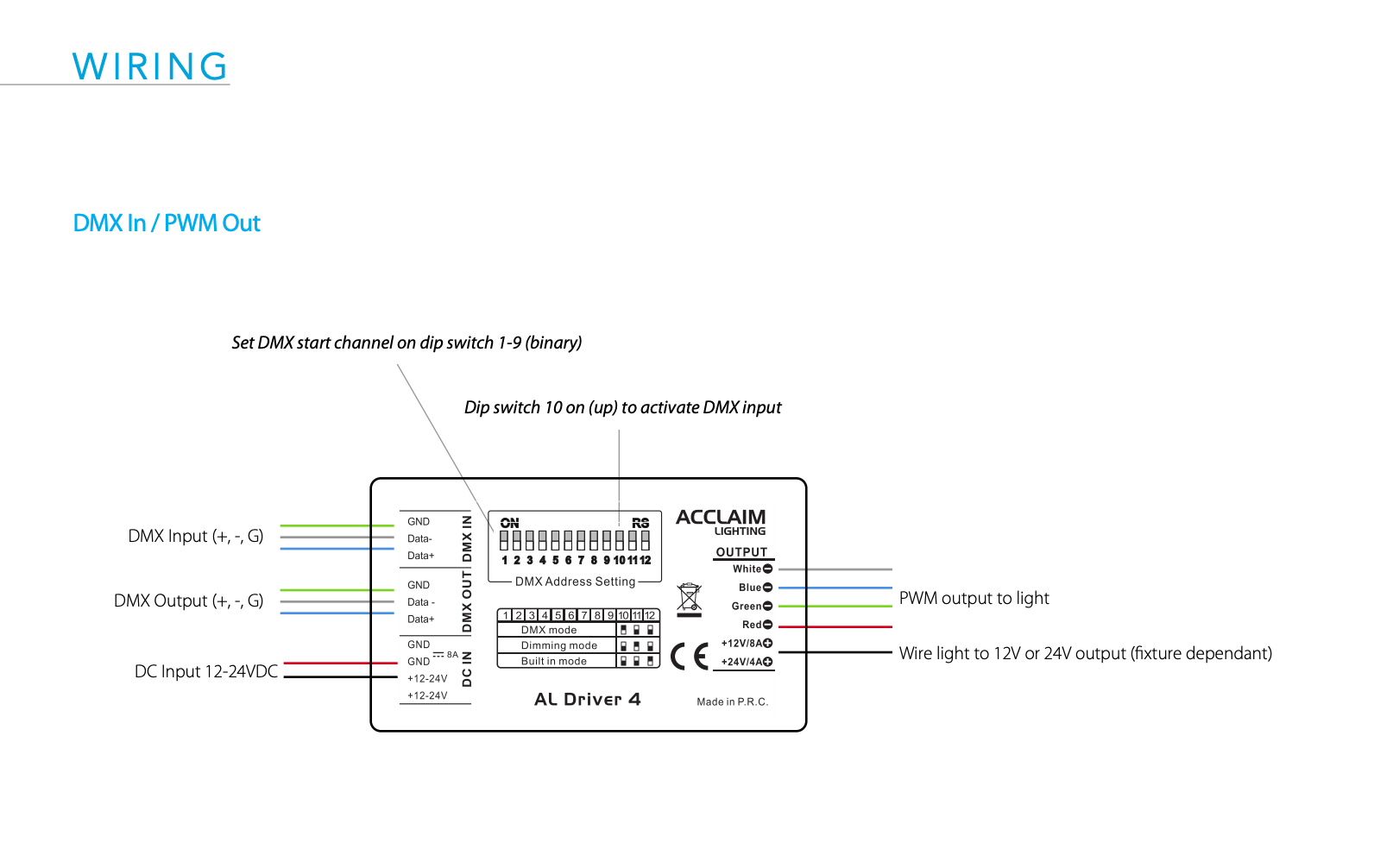

| AL Driver 4 wiring | Drawings | PNG |
| Lighting-Driver-Acclaim-AL Driver 4 | Revit Files | RFA |
Tech Specs
